Manhattan and Q-Q plot¶

Load gwaslab¶

In [1]:

import sys
sys.path.insert(0,"/home/yunye/work/gwaslab/src")
import gwaslab as gl

import sys sys.path.insert(0,"/home/yunye/work/gwaslab/src") import gwaslab as gl

Load data into Sumstats Object¶

In [2]:

mysumstats = gl.Sumstats("t2d_bbj.txt.gz",
             snpid="SNP",
             chrom="CHR",
             pos="POS",
             ea="ALT",
             nea="REF",
             neaf="Frq",
             p="P",
             build="19",
             verbose=False)
mysumstats.fix_chr(verbose=False)

mysumstats = gl.Sumstats("t2d_bbj.txt.gz", snpid="SNP", chrom="CHR", pos="POS", ea="ALT", nea="REF", neaf="Frq", p="P", build="19", verbose=False) mysumstats.fix_chr(verbose=False)

In [3]:

mysumstats.data

mysumstats.data

Out[3]:

	SNPID	CHR	POS	EA	NEA	EAF	P	STATUS
0	1:725932_G_A	1	725932	G	A	0.9960	0.5970	1995999
1	1:725933_A_G	1	725933	G	A	0.0040	0.5973	1995999
2	1:737801_T_C	1	737801	C	T	0.0051	0.6908	1995999
3	1:749963_T_TAA	1	749963	TAA	T	0.8374	0.2846	1995999
4	1:751343_T_A	1	751343	T	A	0.8593	0.2705	1995999
...	...	...	...	...	...	...	...	...
12557756	X:154874837_A_G	23	154874837	G	A	0.7478	0.5840	1995999
12557757	X:154875192_GTACTC_G	23	154875192	GTACTC	G	0.2525	0.5612	1995999
12557758	X:154879115_A_G	23	154879115	G	A	0.7463	0.5646	1995999
12557759	X:154880669_T_A	23	154880669	T	A	0.2558	0.5618	1995999
12557760	X:154880917_C_T	23	154880917	C	T	0.2558	0.5570	1995999

12557761 rows × 8 columns

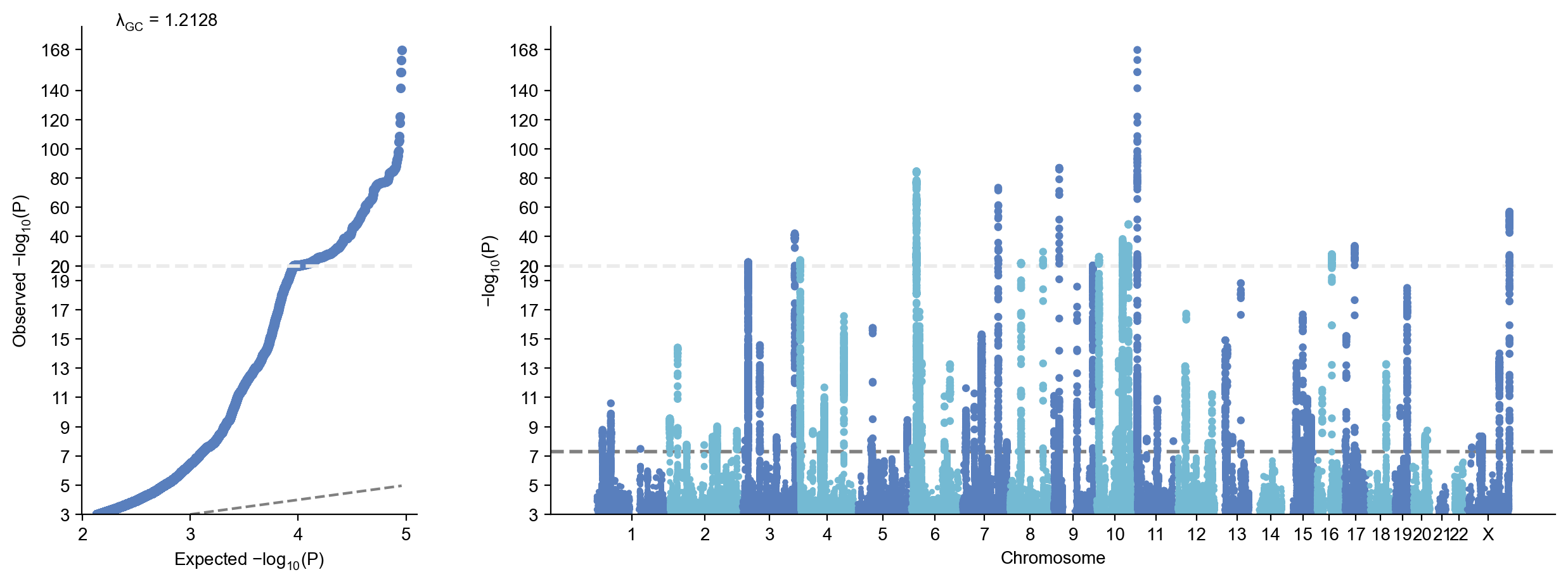

Create Manhattan plot and QQ plot¶

In [4]:

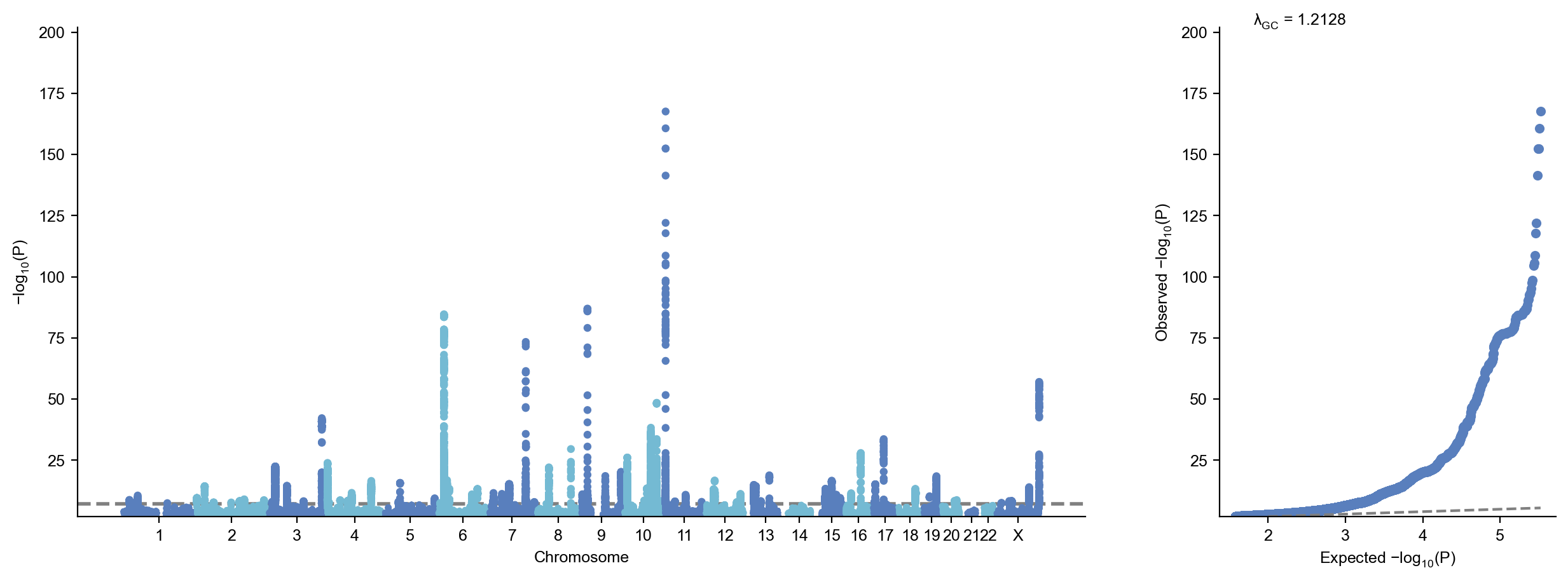

mysumstats.plot_mqq()

mysumstats.plot_mqq()

Sat Feb  3 17:08:01 2024 Start to create MQQ plot...v3.4.38:
Sat Feb  3 17:08:01 2024  -Genomic coordinates version: 19...
Sat Feb  3 17:08:01 2024  -Genome-wide significance level to plot is set to 5e-08 ...
Sat Feb  3 17:08:01 2024  -Raw input contains 12557761 variants...
Sat Feb  3 17:08:01 2024  -MQQ plot layout mode is : mqq
Sat Feb  3 17:08:03 2024 Finished loading specified columns from the sumstats.
Sat Feb  3 17:08:03 2024 Start data conversion and sanity check:
Sat Feb  3 17:08:03 2024  -Removed 0 variants with nan in CHR or POS column ...
Sat Feb  3 17:08:28 2024  -Removed 0 variants with CHR <=0...
Sat Feb  3 17:08:29 2024  -Removed 0 variants with nan in P column ...
Sat Feb  3 17:08:29 2024  -Sanity check after conversion: 0 variants with P value outside of (0,1] will be removed...
Sat Feb  3 17:08:30 2024  -Sumstats P values are being converted to -log10(P)...
Sat Feb  3 17:08:31 2024  -Sanity check: 0 na/inf/-inf variants will be removed...
Sat Feb  3 17:08:32 2024  -Converting data above cut line...
Sat Feb  3 17:08:32 2024  -Maximum -log10(P) value is 167.58838029403677 .
Sat Feb  3 17:08:32 2024 Finished data conversion and sanity check.
Sat Feb  3 17:08:32 2024 Start to create MQQ plot with 12557761 variants...
Sat Feb  3 17:08:46 2024  -Creating background plot...
Sat Feb  3 17:09:10 2024 Finished creating MQQ plot successfully!
Sat Feb  3 17:09:10 2024 Start to extract variants for annotation...
Sat Feb  3 17:09:11 2024  -Found 89 significant variants with a sliding window size of 500 kb...
Sat Feb  3 17:09:11 2024 Finished extracting variants for annotation...
Sat Feb  3 17:09:11 2024 Start to process figure arts.
Sat Feb  3 17:09:11 2024  -Processing X ticks...
Sat Feb  3 17:09:11 2024  -Processing X labels...
Sat Feb  3 17:09:11 2024  -Processing Y labels...
Sat Feb  3 17:09:11 2024  -Processing Y tick lables...
Sat Feb  3 17:09:11 2024  -Processing Y labels...
Sat Feb  3 17:09:11 2024  -Processing lines...
Sat Feb  3 17:09:11 2024 Finished processing figure arts.
Sat Feb  3 17:09:11 2024 Start to annotate variants...
Sat Feb  3 17:09:11 2024  -Skip annotating
Sat Feb  3 17:09:11 2024 Finished annotating variants.
Sat Feb  3 17:09:11 2024 Start to create QQ plot with 12557761 variants:
Sat Feb  3 17:09:11 2024  -Plotting all variants...
Sat Feb  3 17:09:13 2024  -Expected range of P: (0,1.0)
Sat Feb  3 17:09:14 2024  -Lambda GC (MLOG10P mode) at 0.5 is   1.21283
Sat Feb  3 17:09:14 2024  -Processing Y tick lables...
Sat Feb  3 17:09:14 2024 Finished creating QQ plot successfully!
Sat Feb  3 17:09:14 2024 Start to save figure...
Sat Feb  3 17:09:14 2024  -Skip saving figure!
Sat Feb  3 17:09:14 2024 Finished saving figure...
Sat Feb  3 17:09:14 2024 Finished creating plot successfully!

Out[4]:

(<Figure size 3000x1000 with 2 Axes>, <gwaslab.g_Log.Log at 0x7f2820f81ee0>)

gl.plot_mqq() Options¶

Layout mode¶

If plotting all variants, it may take several minutes. You can use skip to skip variants with low MLOG10P in the plot.

Note: use verbose=False to stop printing log and use check=False to skip sanity check for mqq plots

4 patterns of layout:

• mode= "mqq" (default)
• mode= "qqm"
• mode= "qq"
• mode= "m"

In [4]:

mysumstats.plot_mqq(skip=3,cut=20,mode="qqm",check=False, verbose=False)

mysumstats.plot_mqq(skip=3,cut=20,mode="qqm",check=False, verbose=False)

Out[4]:

(<Figure size 3000x1000 with 2 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

In [5]:

mysumstats.plot_mqq(skip=3,cut=20,mode="m",check=False,verbose=False)

mysumstats.plot_mqq(skip=3,cut=20,mode="m",check=False,verbose=False)

Out[5]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

In [6]:

mysumstats.plot_mqq(mode="qq", fig_args= {"figsize":(10,10)},check=False,verbose=False)

mysumstats.plot_mqq(mode="qq", fig_args= {"figsize":(10,10)},check=False,verbose=False)

Out[6]:

(<Figure size 2000x2000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

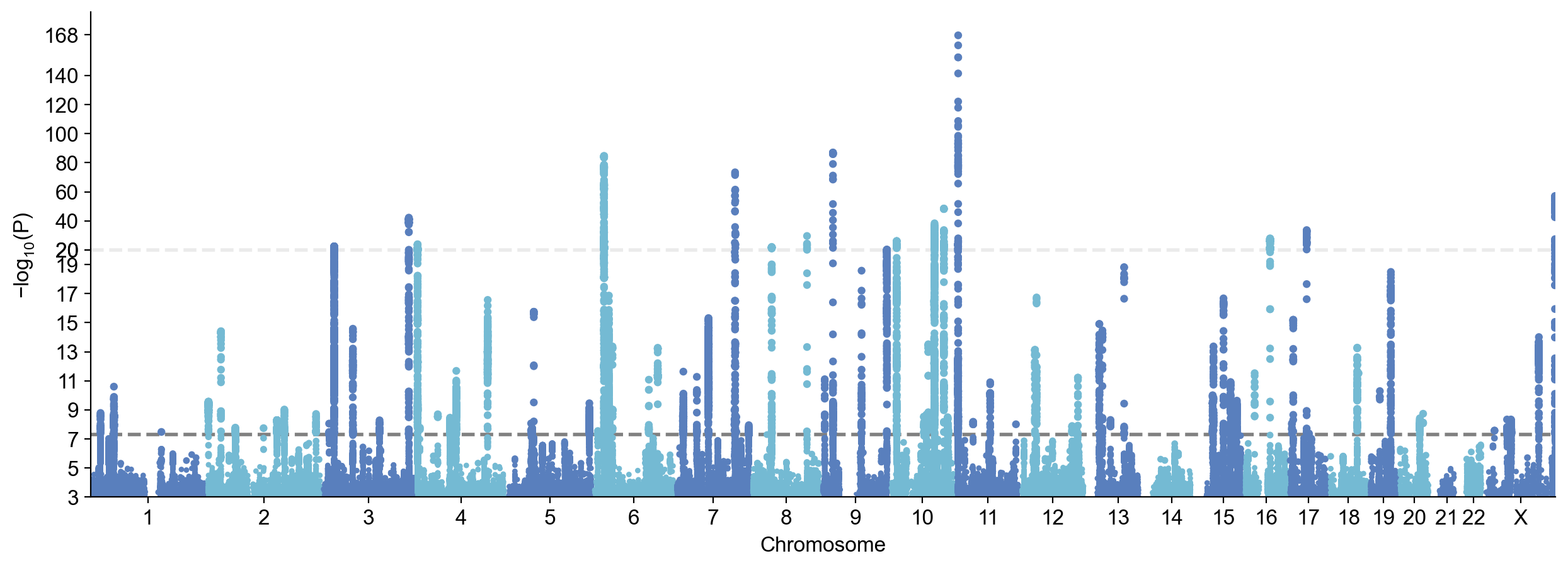

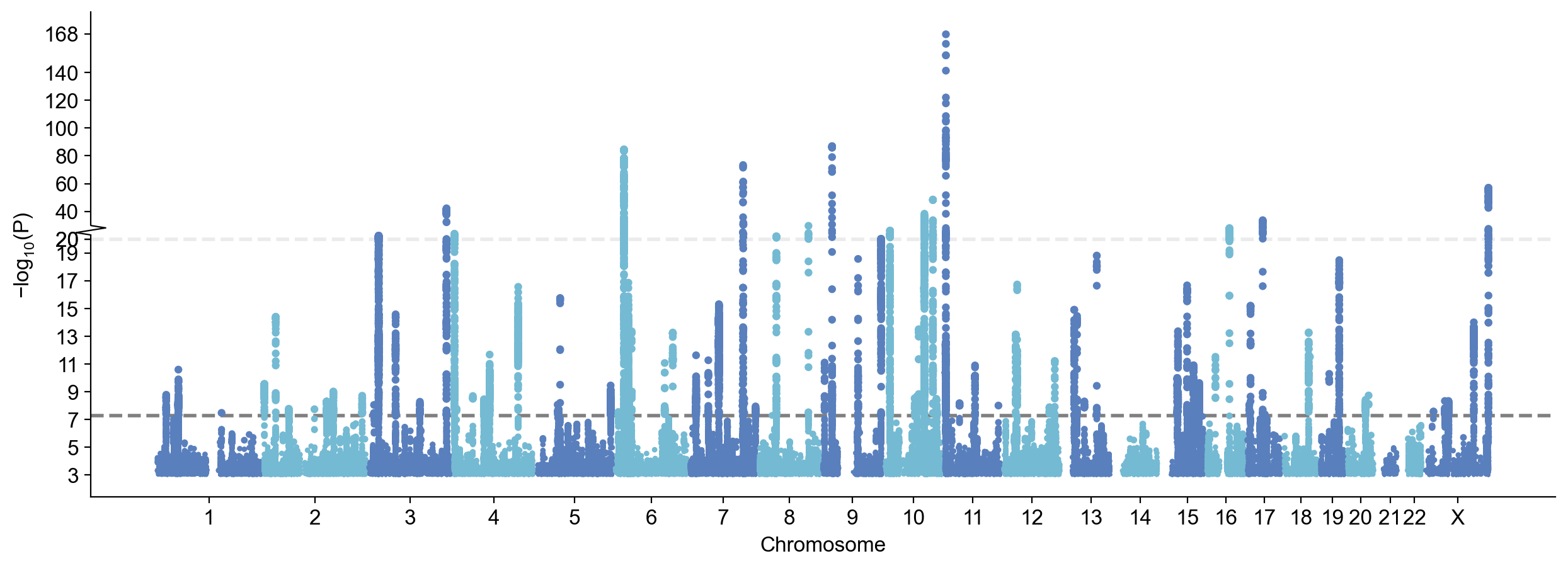

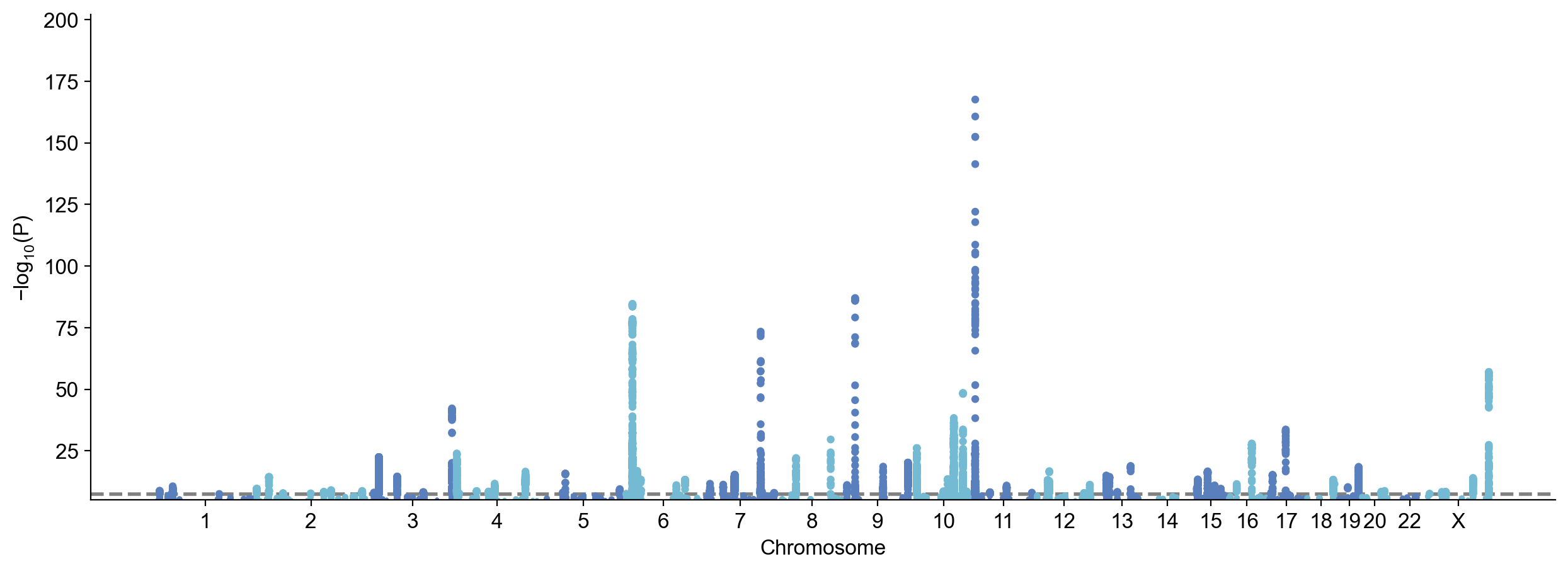

Y axis: Skip and Cut¶

• skip : skip the variants with low -log10(P) values for plotting
• cut : scale down the -log10(P) for variants above a certain threshold

In [7]:

mysumstats.plot_mqq(skip=3,cut=20,mode= "m", check=False ,verbose=False)

mysumstats.plot_mqq(skip=3,cut=20,mode= "m", check=False ,verbose=False)

Out[7]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

In [8]:

mysumstats.plot_mqq(skip=4,cut=50 ,mode= "m",check=False,verbose=False)

mysumstats.plot_mqq(skip=4,cut=50 ,mode= "m",check=False,verbose=False)

Out[8]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

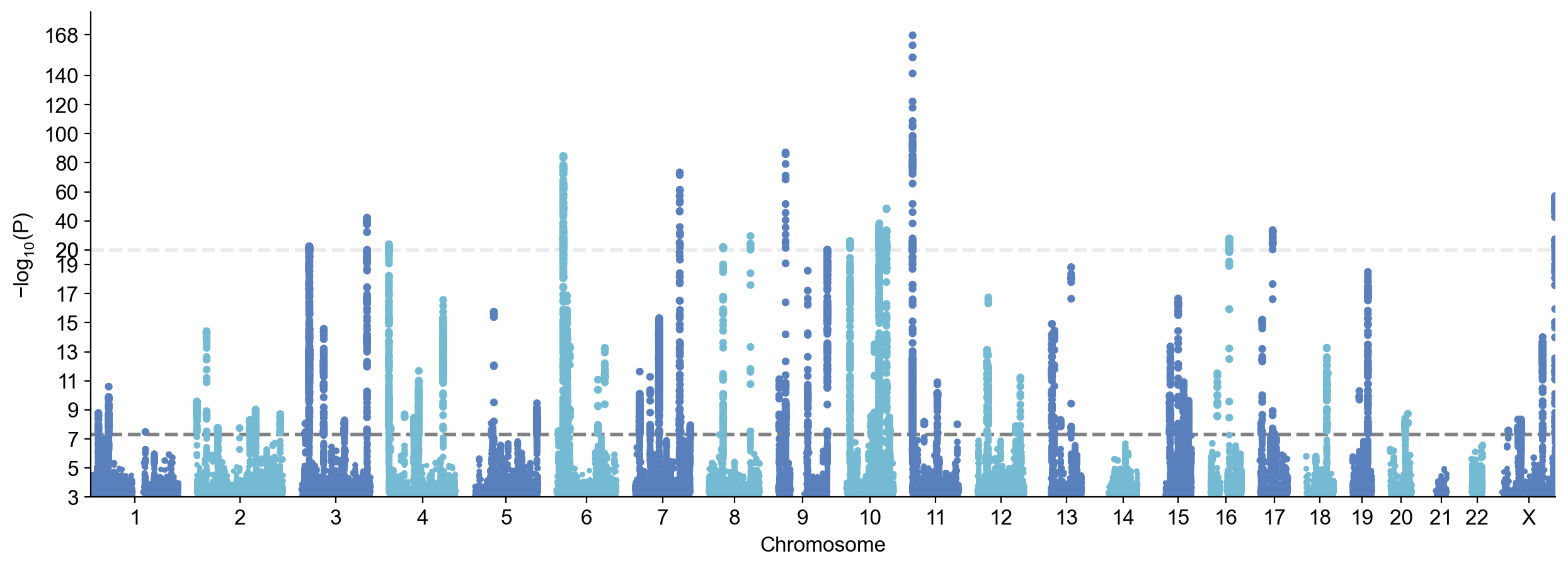

Make the Y axis jagged to indicate that it has been rescale.

In [9]:

mysumstats.plot_mqq(skip=3,cut=20, jagged=True,mode= "m",check=False,verbose=False)

mysumstats.plot_mqq(skip=3,cut=20, jagged=True,mode= "m",check=False,verbose=False)

Out[9]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

X axis¶

• use_rank: if True, GWASLab will use position rank instead of the physical base-pair positions for x aixs.

There will be no gap if use_rank = True

In [10]:

mysumstats.plot_mqq(skip=3,cut=20,use_rank=True,mode= "m",check=False,verbose=False)

mysumstats.plot_mqq(skip=3,cut=20,use_rank=True,mode= "m",check=False,verbose=False)

Out[10]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

Annotation¶

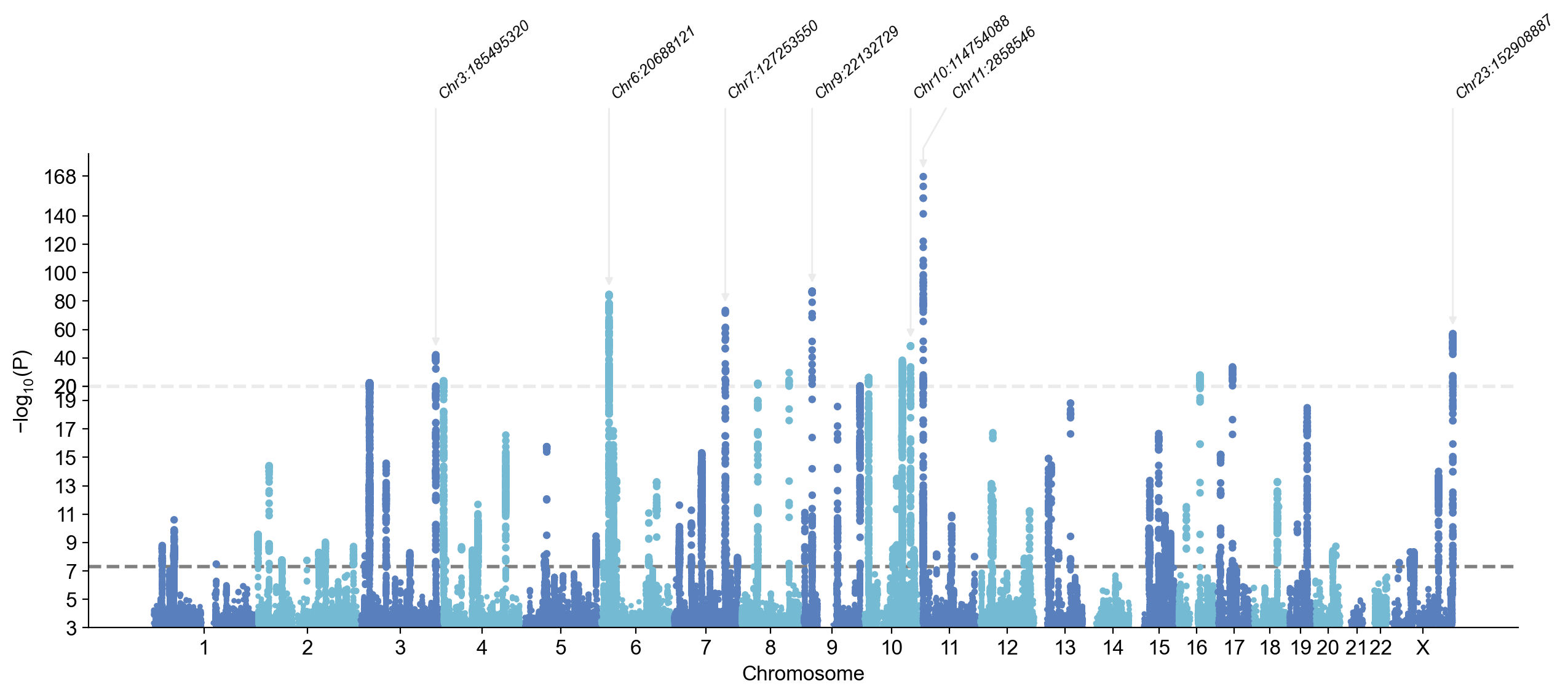

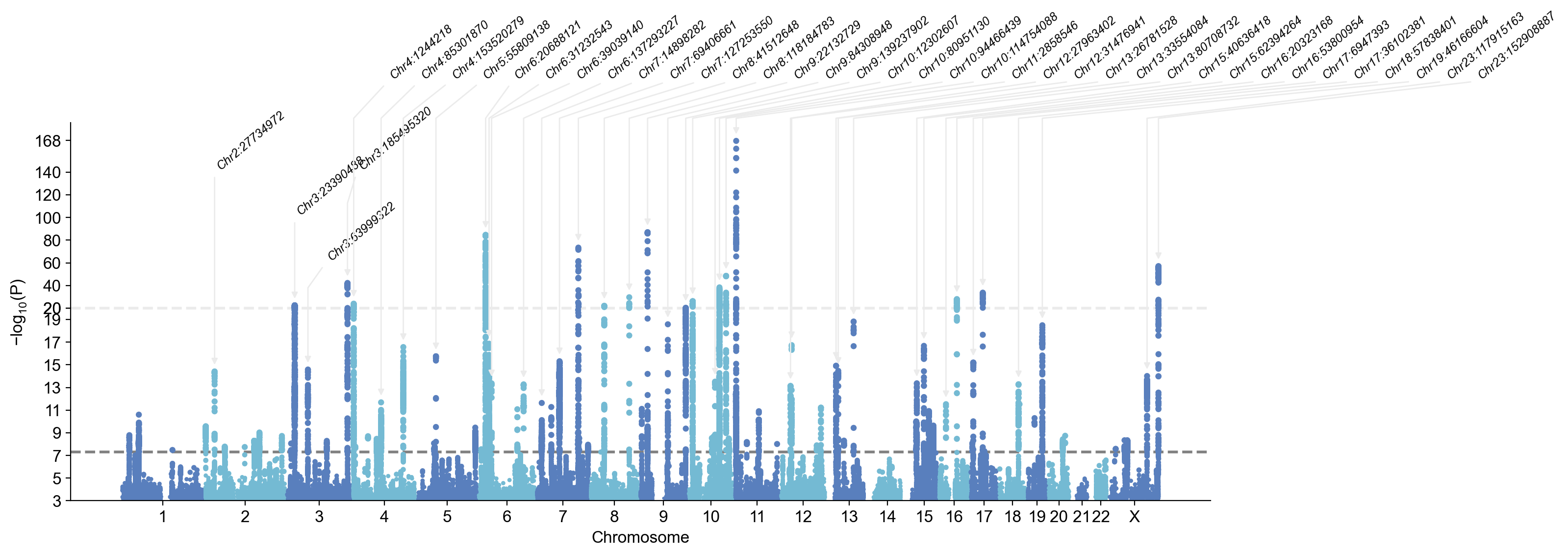

anno=True : annoatate all lead variants with chr:pos

In [11]:

mysumstats.plot_mqq(skip=3,cut=20,anno=True,mode= "m",check=False,verbose=False)

mysumstats.plot_mqq(skip=3,cut=20,anno=True,mode= "m",check=False,verbose=False)

Out[11]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

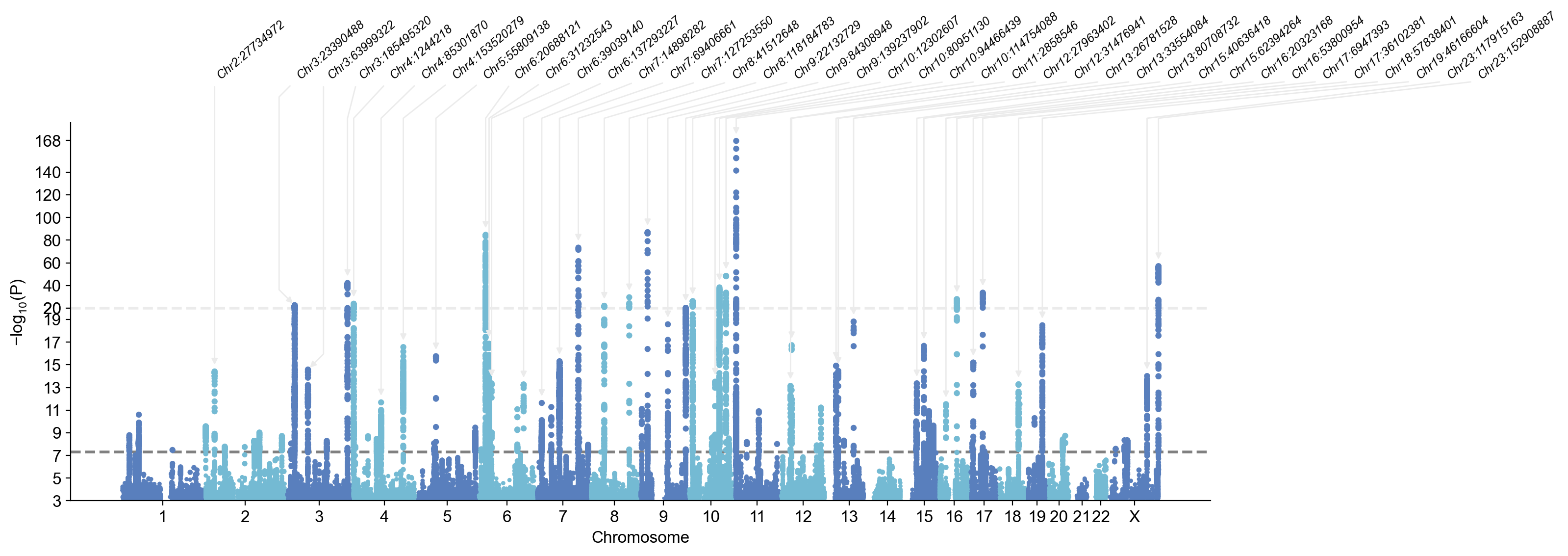

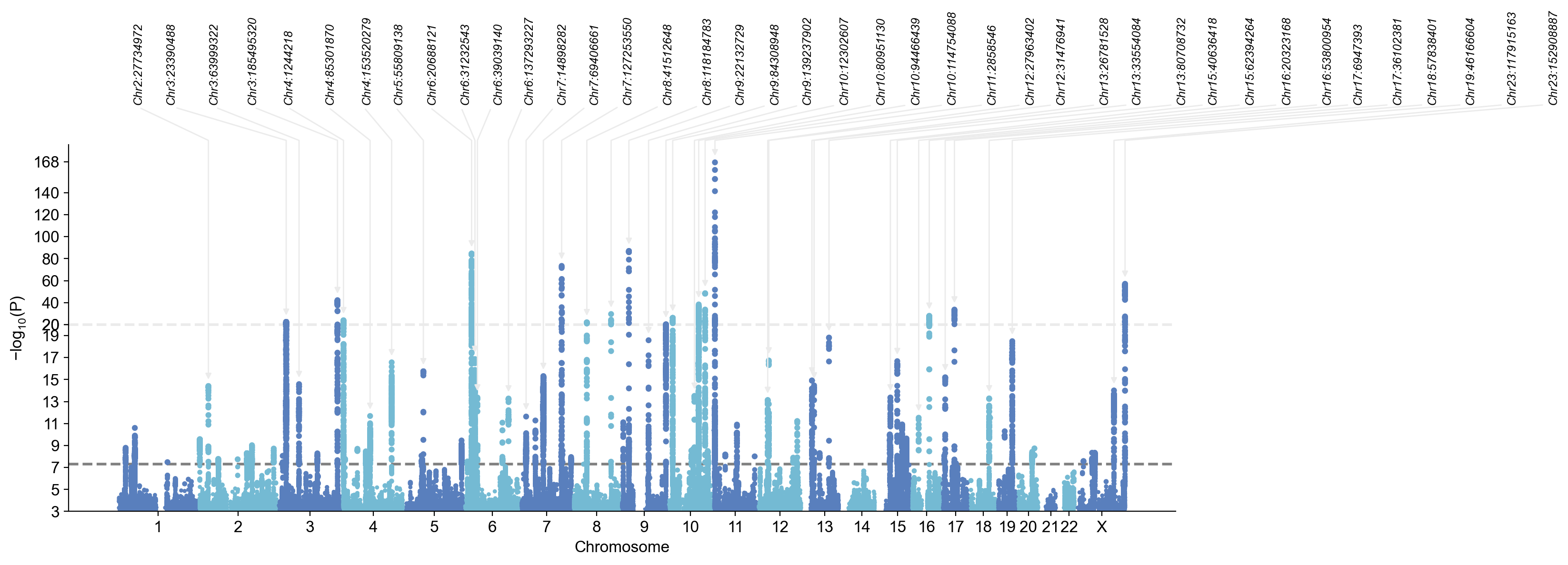

Since there are a large number of novel loci, if we annotate all loci, it will be too messy. Let's only annotate the loci with P<1e-20 by specifying sig_level_lead=1e-20.

In [12]:

mysumstats.plot_mqq(skip=3,cut=20,anno=True, sig_level_lead=1e-20,mode= "m",check=False,verbose=False)

mysumstats.plot_mqq(skip=3,cut=20,anno=True, sig_level_lead=1e-20,mode= "m",check=False,verbose=False)

Out[12]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

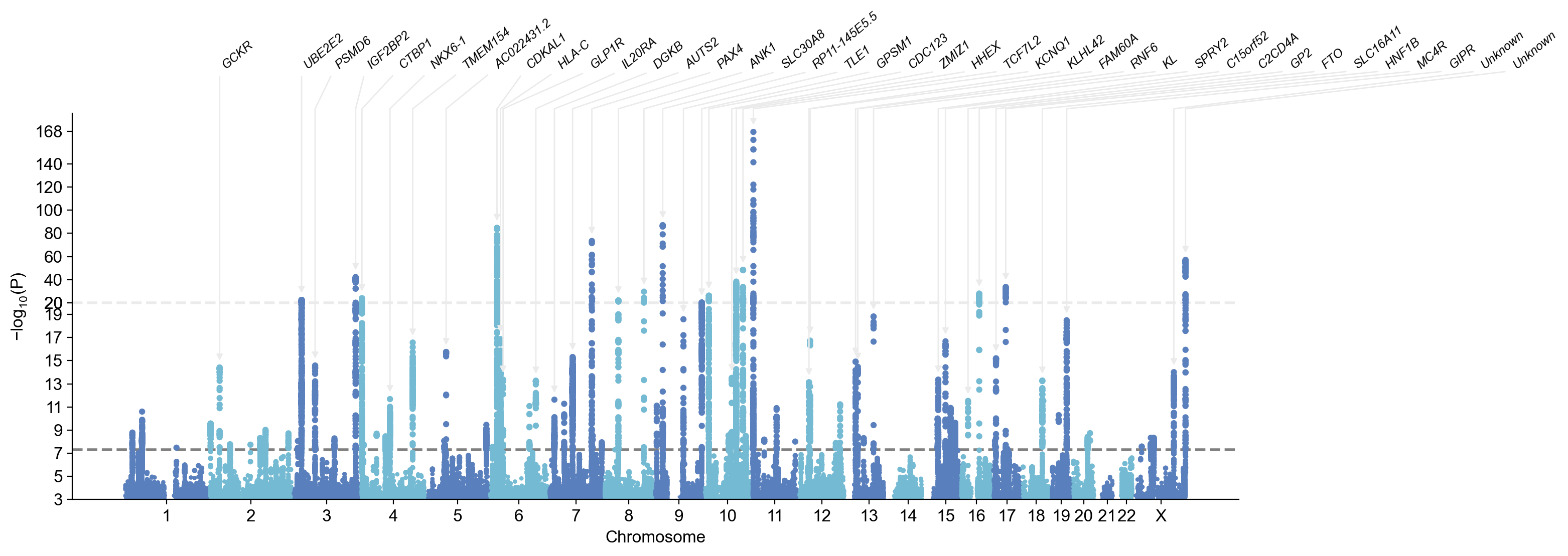

GWASLab provides three types of different annotation styles

anno_style="right", anno_style="expand", and anno_style="tight"

In [13]:

mysumstats.plot_mqq(skip=3,cut=20,anno=True,anno_style="expand", sig_level_lead=1e-20,mode= "m",check=False,verbose=False)

mysumstats.plot_mqq(skip=3,cut=20,anno=True,anno_style="expand", sig_level_lead=1e-20,mode= "m",check=False,verbose=False)

Out[13]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

In [14]:

mysumstats.plot_mqq(skip=3,cut=20,anno=True,anno_style="tight", sig_level_lead=1e-20,mode= "m", check=False,verbose=False)

mysumstats.plot_mqq(skip=3,cut=20,anno=True,anno_style="tight", sig_level_lead=1e-20,mode= "m", check=False,verbose=False)

Out[14]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

If we want to annotate only a subset of variants, we can pass a list of variant IDs to anno_set.

Let's check all lead variants and select only two to annotate.

In [15]:

mysumstats.get_lead(verbose=False).sort_values(by="P")

mysumstats.get_lead(verbose=False).sort_values(by="P")

Out[15]:

	SNPID	CHR	POS	EA	NEA	EAF	P	STATUS
7947442	11:2858546_C_T	11	2858546	C	T	0.6209	2.580000e-168	1995999
6903480	9:22132729_A_G	9	22132729	G	A	0.4367	9.848000e-88	1995999
4664126	6:20688121_T_A	6	20688121	T	A	0.5758	2.062000e-85	1995999
5965364	7:127253550_C_T	7	127253550	C	T	0.9081	4.101000e-74	1995999
12554976	X:152908887_G_A	23	152908887	G	A	0.6792	9.197000e-58	1995999
...	...	...	...	...	...	...	...	...
12272930	X:21569920_A_G	23	21569920	G	A	0.3190	2.616000e-08	1995999
4599424	6:7226959_C_T	6	7226959	C	T	0.6657	2.849000e-08	1995999
10287151	15:90393949_C_CT	15	90393949	C	CT	0.3445	3.134000e-08	1995999
534095	1:154309595_TA_T	1	154309595	TA	T	0.0947	3.289000e-08	1995999
10874150	17:40913366_C_T	17	40913366	C	T	0.4707	4.159000e-08	1995999

89 rows × 8 columns

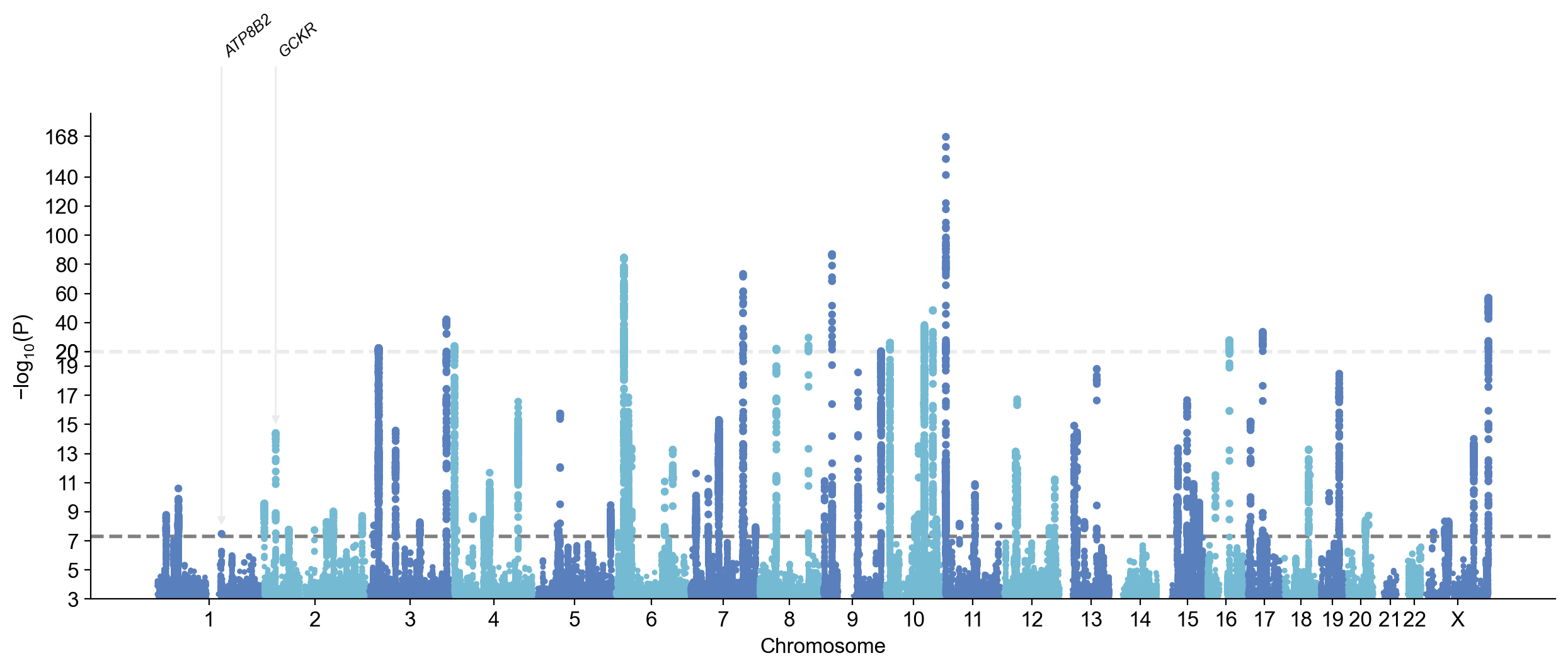

This time, let's annotate 1:154309595_TA_T and 2:27734972_G_A with its nearest gene names!

• anno="GENENAME" : automatically annoatate the nearest gene name
• anno_set : the set of variants you want to annotate

In [16]:

mysumstats.plot_mqq(skip=3,cut=20,anno="GENENAME",anno_set=["1:154309595_TA_T","2:27734972_G_A"],mode= "m",check=False,verbose=False)

mysumstats.plot_mqq(skip=3,cut=20,anno="GENENAME",anno_set=["1:154309595_TA_T","2:27734972_G_A"],mode= "m",check=False,verbose=False)

Out[16]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

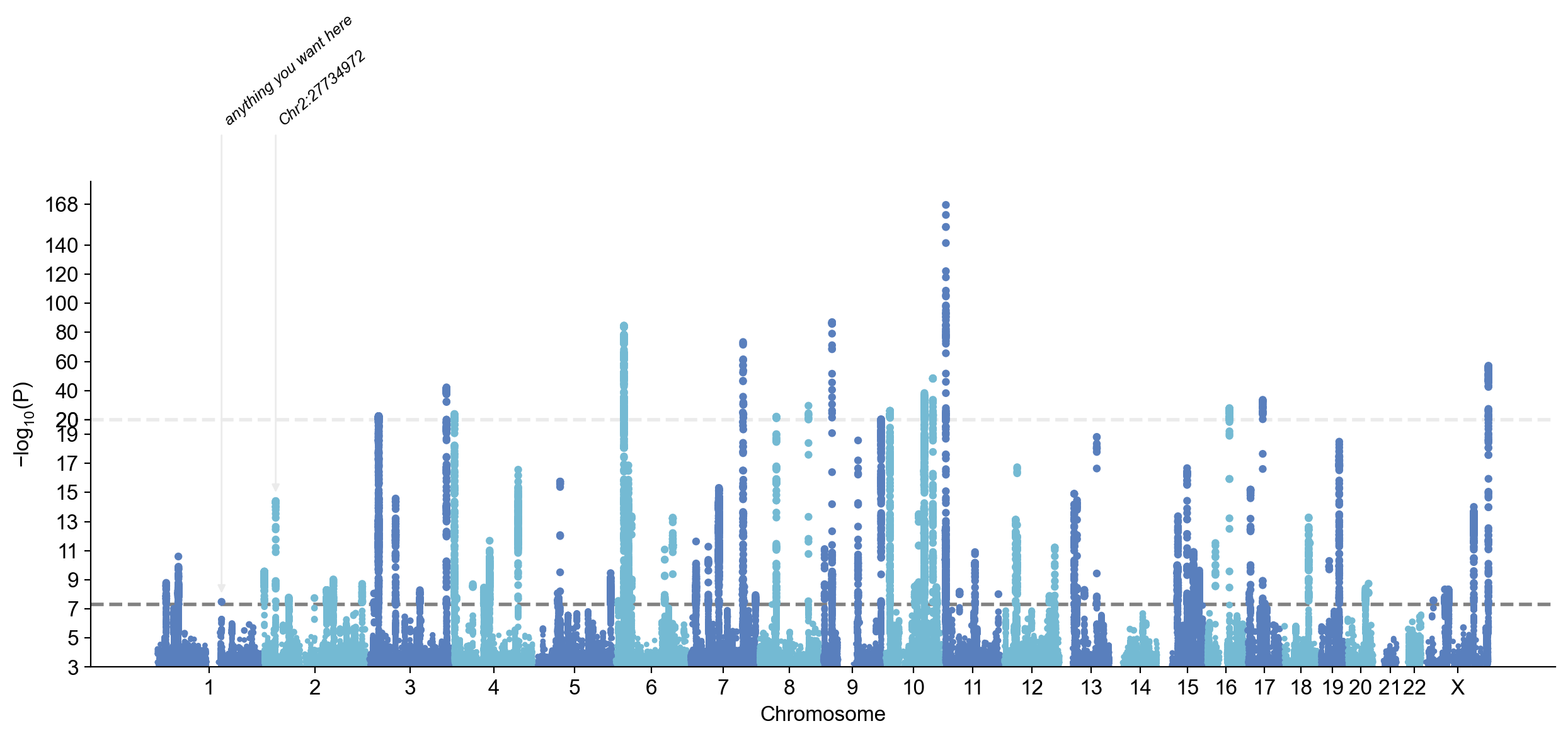

Annotate with customized text

In [17]:

mysumstats.plot_mqq(skip=3,
                    cut=20,
                    anno=True,
                    anno_set=["1:154309595_TA_T","2:27734972_G_A"],
                    anno_alias={"1:154309595_TA_T":"anything you want here"},
                    mode= "m",
                    verbose=False)

mysumstats.plot_mqq(skip=3, cut=20, anno=True, anno_set=["1:154309595_TA_T","2:27734972_G_A"], anno_alias={"1:154309595_TA_T":"anything you want here"}, mode= "m", verbose=False)

Out[17]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

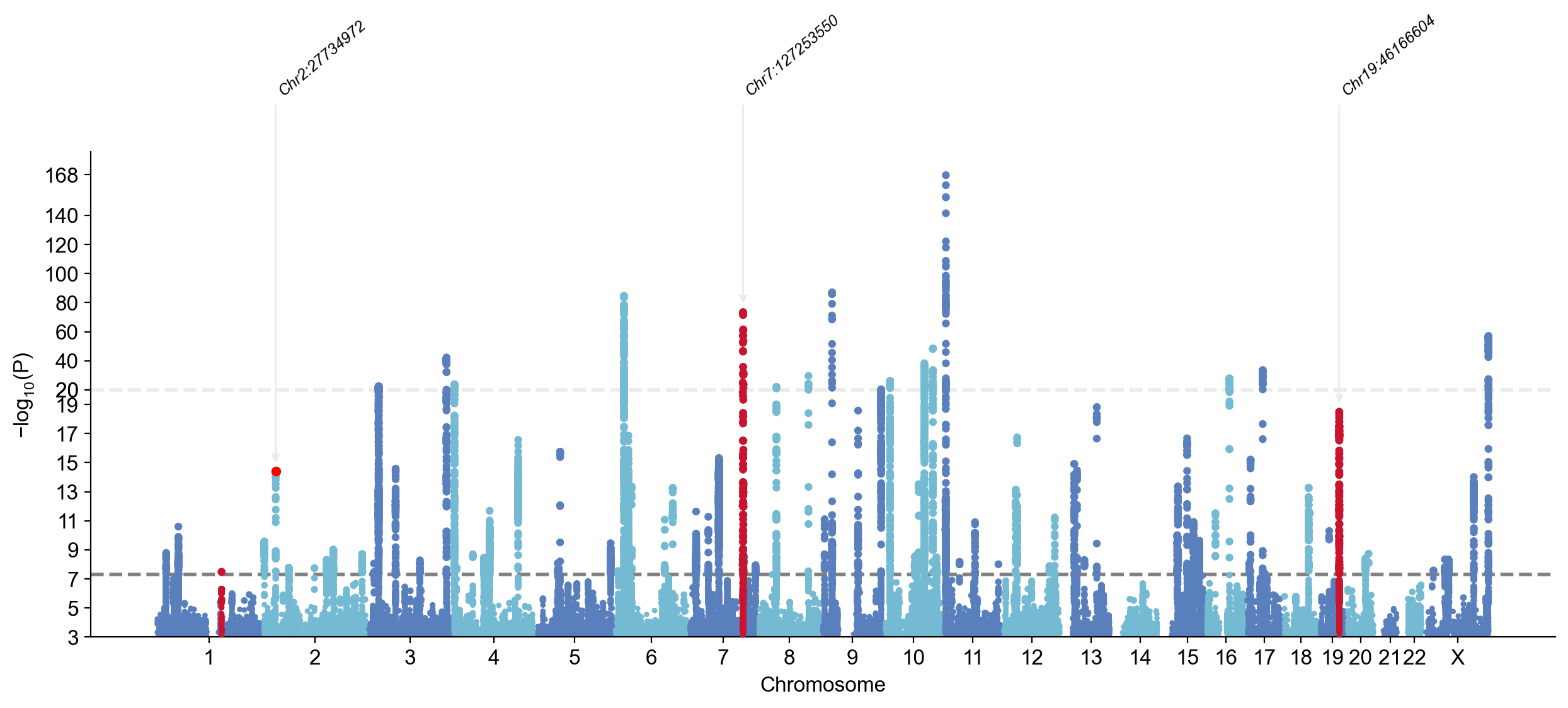

Highlight loci & Pinpoint variants (single group)¶

• highlight: a variant list of loci you want to highlight
• pinpoint: a variant list of variants you want to pinpoint

In [18]:

mysumstats.plot_mqq(skip=3,cut=20,
                    anno=True,
                    anno_set=["2:27734972_G_A","2:27734972_G_A","7:127253550_C_T", "19:46166604_C_T"],
                    highlight=["19:46166604_C_T","1:154309595_TA_T","7:127253550_C_T"],
                    highlight_windowkb=1000,
                    pinpoint=["2:27734972_G_A"],
                    mode= "m",
                    check=False,verbose=False)

mysumstats.plot_mqq(skip=3,cut=20, anno=True, anno_set=["2:27734972_G_A","2:27734972_G_A","7:127253550_C_T", "19:46166604_C_T"], highlight=["19:46166604_C_T","1:154309595_TA_T","7:127253550_C_T"], highlight_windowkb=1000, pinpoint=["2:27734972_G_A"], mode= "m", check=False,verbose=False)

Out[18]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

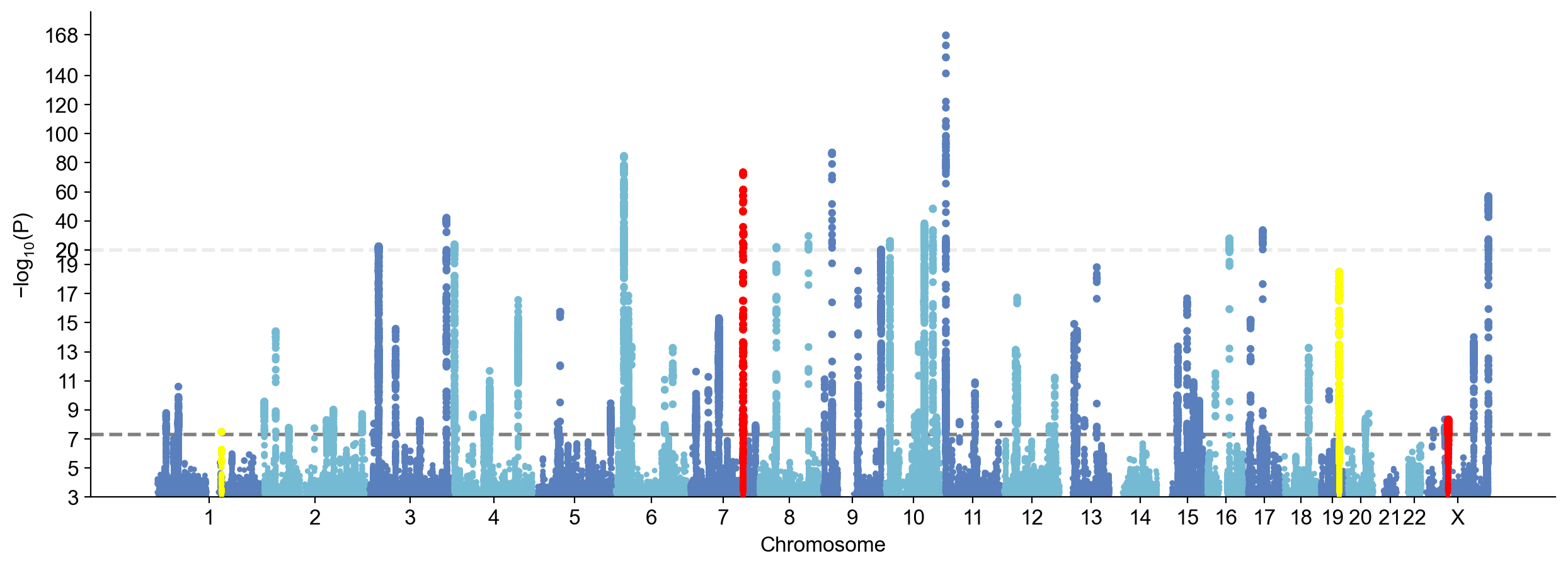

Highlight loci & Pinpoint variants (multi-group)¶

Instead of a list, you can provide a list of lists. Each member list is then a group.

In [19]:

mysumstats.plot_mqq(skip=3,cut=20,
                    highlight=[
                               ["19:46166604_C_T","1:154309595_TA_T"],
                               ["X:57170781_A_AT","7:127253550_C_T"]
                              ],
                    highlight_windowkb=1000,
                    highlight_color=["yellow","red"],
                    mode= "m",
                    check=False,verbose=False)

mysumstats.plot_mqq(skip=3,cut=20, highlight=[ ["19:46166604_C_T","1:154309595_TA_T"], ["X:57170781_A_AT","7:127253550_C_T"] ], highlight_windowkb=1000, highlight_color=["yellow","red"], mode= "m", check=False,verbose=False)

Out[19]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

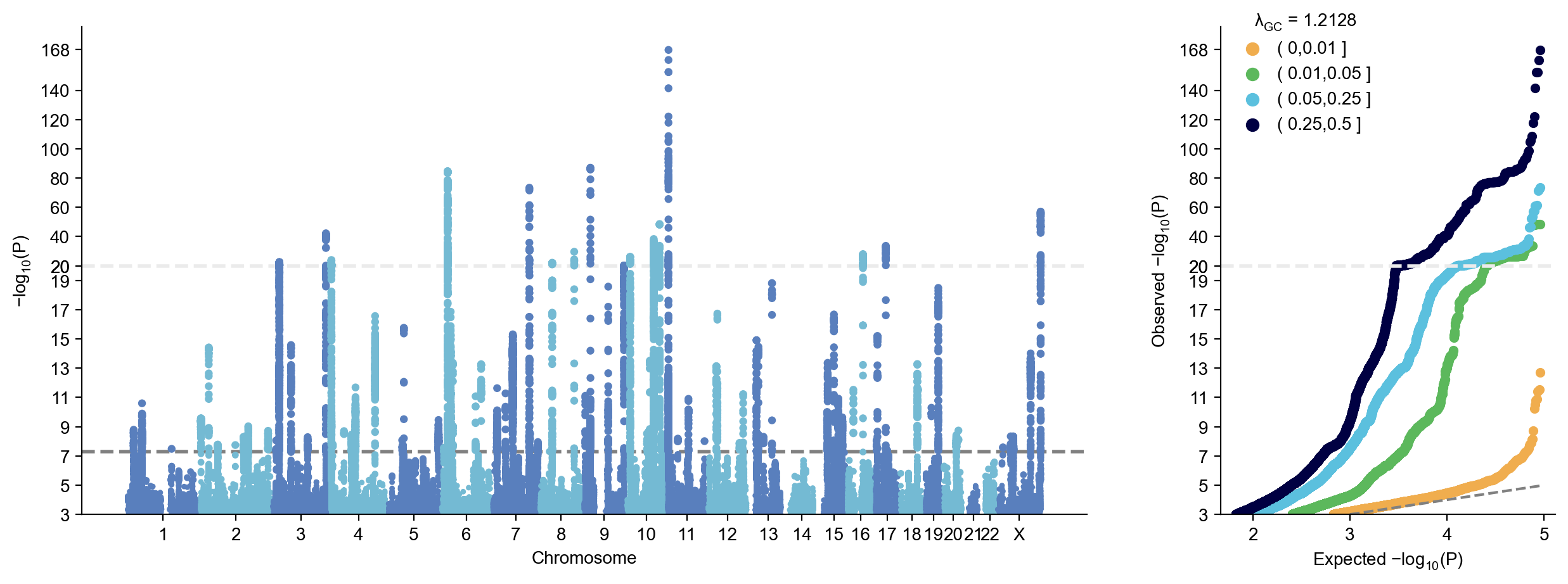

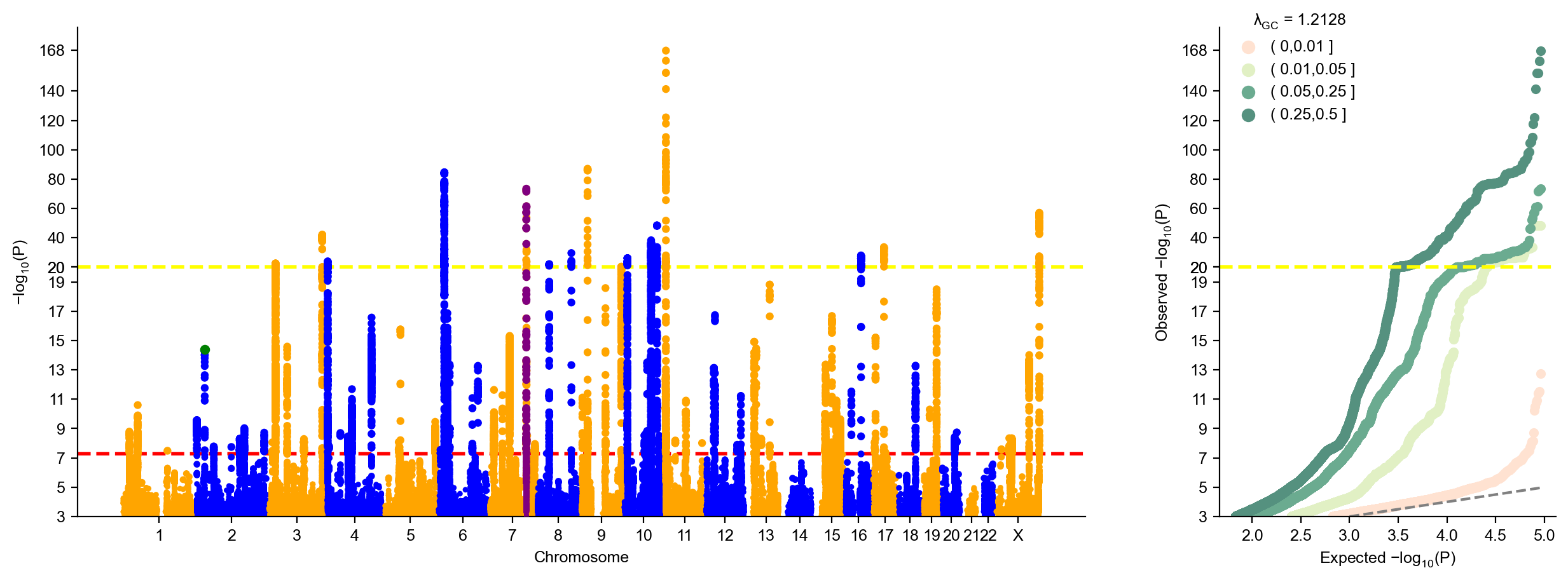

MAF-stratified QQ plot¶

In [20]:

mysumstats.plot_mqq(skip=3,cut=20, mode="mqq",stratified=True,check=False,verbose=False)

mysumstats.plot_mqq(skip=3,cut=20, mode="mqq",stratified=True,check=False,verbose=False)

Out[20]:

(<Figure size 3000x1000 with 2 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

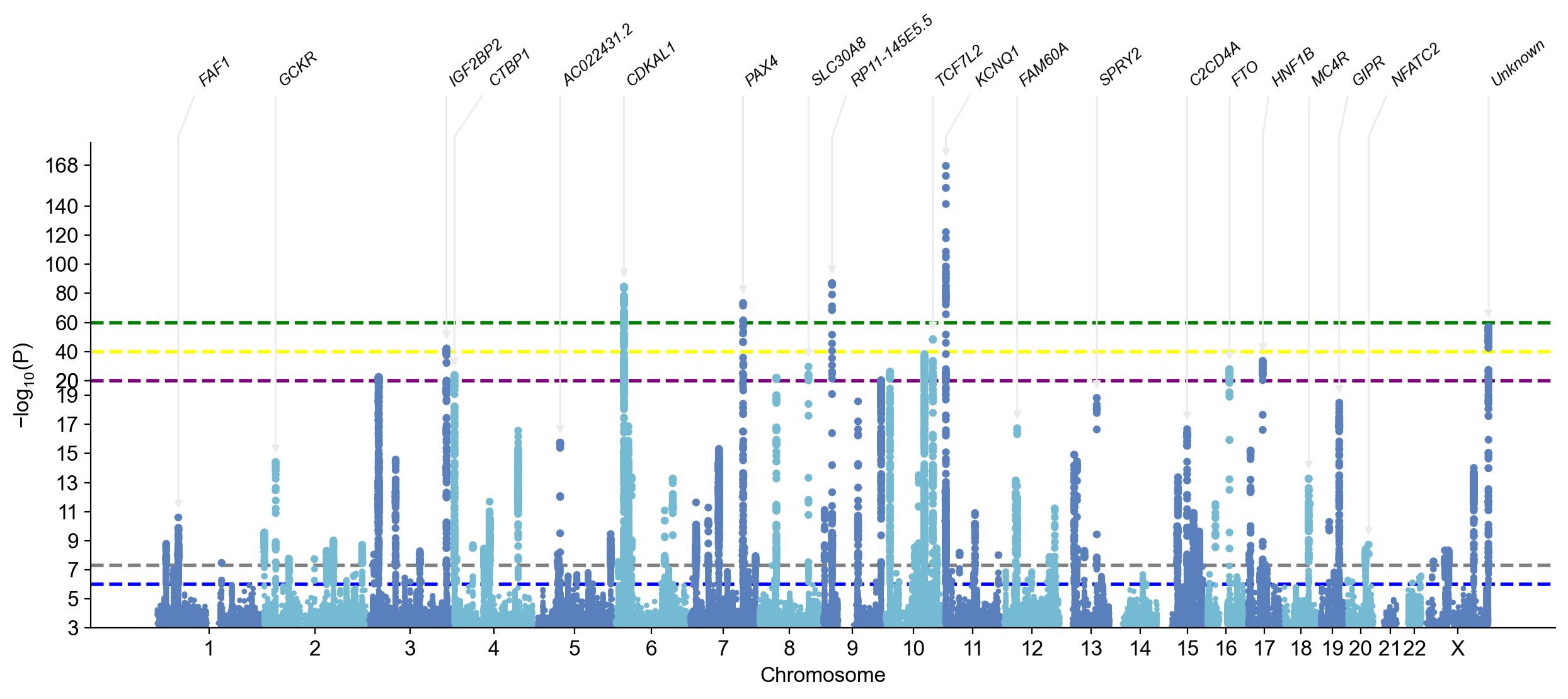

Auxiliary lines¶

In [21]:

mysumstats.plot_mqq(skip=3,
                build="19",
                anno="GENENAME",
                windowsizekb=1000000,
                cut=20,
                cut_line_color="purple",
                sig_level=5e-8,
                sig_level_lead=1e-6,
                sig_line_color="grey",
                suggestive_sig_line = True,
                suggestive_sig_level = 1e-6,
                suggestive_sig_line_color="blue",
                additional_line=[1e-40,1e-60],
                additional_line_color=["yellow","green"],
                mode= "m",check=False,verbose=False)

mysumstats.plot_mqq(skip=3, build="19", anno="GENENAME", windowsizekb=1000000, cut=20, cut_line_color="purple", sig_level=5e-8, sig_level_lead=1e-6, sig_line_color="grey", suggestive_sig_line = True, suggestive_sig_level = 1e-6, suggestive_sig_line_color="blue", additional_line=[1e-40,1e-60], additional_line_color=["yellow","green"], mode= "m",check=False,verbose=False)

Out[21]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

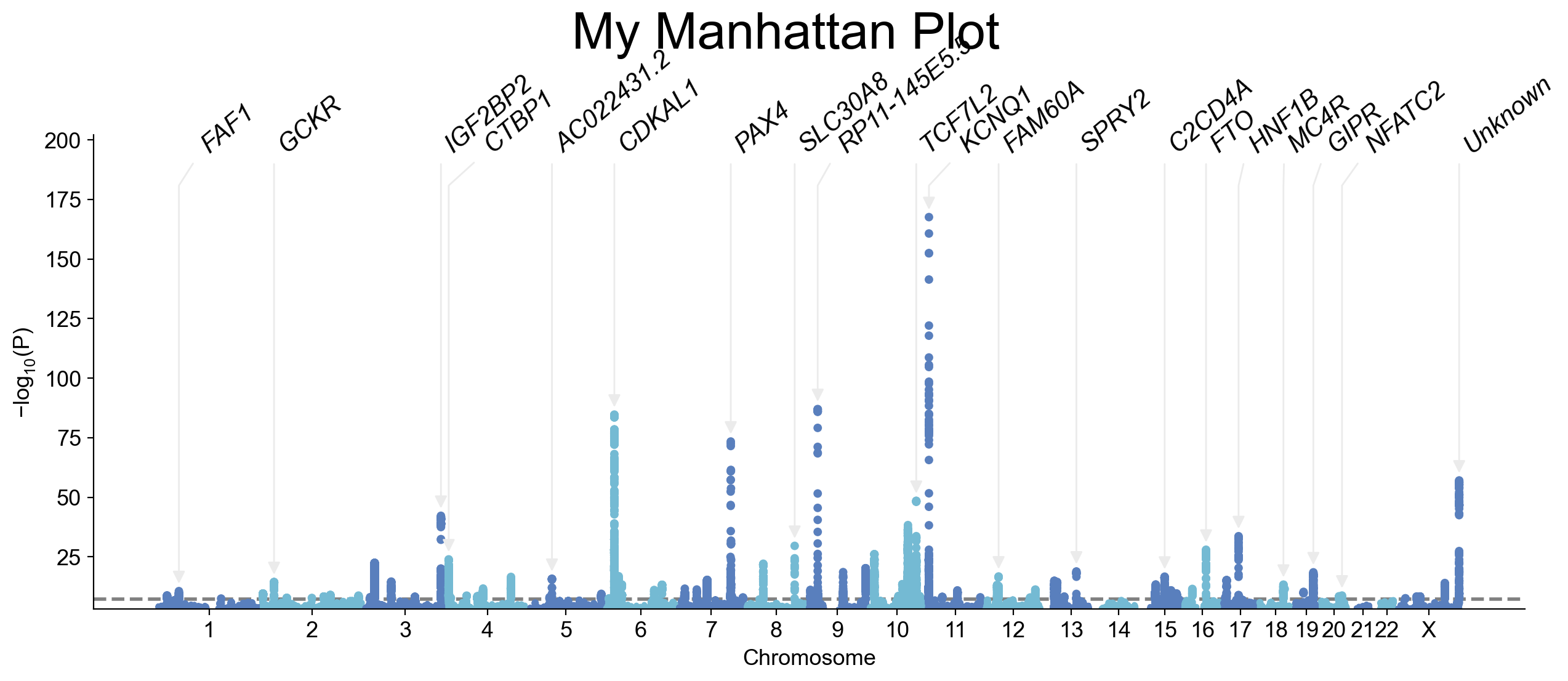

Font and marker size¶

• fontsize
• anno_fontsize
• title_fontsize
• marker_size

In [22]:

mysumstats.plot_mqq(skip=3,
          anno="GENENAME",
          title= "My Manhattan Plot",
          windowsizekb=1000000,
          fontsize =13,
          anno_fontsize = 15,
          title_fontsize = 30,
          marker_size=(5,25),
          mode= "m",
          verbose=False,
          check=False
)

mysumstats.plot_mqq(skip=3, anno="GENENAME", title= "My Manhattan Plot", windowsizekb=1000000, fontsize =13, anno_fontsize = 15, title_fontsize = 30, marker_size=(5,25), mode= "m", verbose=False, check=False )

Out[22]:

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

Colors¶

• colors
• cut_line_color
• sig_line_color
• highlight_color
• pinpoint_color
• maf_bin_colors

In [23]:

mysumstats.plot_mqq(skip=3,
          cut=20,
          stratified=True,
          highlight=["7:127253550_C_T"],
          pinpoint=["2:27734972_G_A"],
          colors=["orange","blue"],
          cut_line_color="yellow",
          sig_line_color="red",
          highlight_color="purple",
          pinpoint_color ="green",
          maf_bin_colors = ["#FFE2D1","#E1F0C4", "#6BAB90","#55917F"],
          check=False,verbose=False
)

mysumstats.plot_mqq(skip=3, cut=20, stratified=True, highlight=["7:127253550_C_T"], pinpoint=["2:27734972_G_A"], colors=["orange","blue"], cut_line_color="yellow", sig_line_color="red", highlight_color="purple", pinpoint_color ="green", maf_bin_colors = ["#FFE2D1","#E1F0C4", "#6BAB90","#55917F"], check=False,verbose=False )

Out[23]:

(<Figure size 3000x1000 with 2 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

Save plots¶

In [24]:

mysumstats.plot_mqq(skip=3,
                    cut=20,
                    mode="mqq",
                    stratified=True,
                    save="my_maf_stratified_mqq_plot.png",
                    save_args={"dpi":300,"facecolor":"white"})

mysumstats.plot_mqq(skip=3, cut=20, mode="mqq", stratified=True, save="my_maf_stratified_mqq_plot.png", save_args={"dpi":300,"facecolor":"white"})

Sat Feb  3 18:13:57 2024 Start to create MQQ plot...v3.4.38:
Sat Feb  3 18:13:57 2024  -Genomic coordinates version: 19...
Sat Feb  3 18:13:57 2024  -Genome-wide significance level to plot is set to 5e-08 ...
Sat Feb  3 18:13:57 2024  -Raw input contains 12557761 variants...
Sat Feb  3 18:13:57 2024  -MQQ plot layout mode is : mqq
Sat Feb  3 18:14:00 2024 Finished loading specified columns from the sumstats.
Sat Feb  3 18:14:00 2024 Start data conversion and sanity check:
Sat Feb  3 18:14:01 2024  -Removed 0 variants with nan in CHR or POS column ...
Sat Feb  3 18:14:26 2024  -Removed 0 variants with CHR <=0...
Sat Feb  3 18:14:27 2024  -Removed 0 variants with nan in EAF column ...
Sat Feb  3 18:14:27 2024  -Removed 0 variants with nan in P column ...
Sat Feb  3 18:14:28 2024  -Sanity check after conversion: 0 variants with P value outside of (0,1] will be removed...
Sat Feb  3 18:14:28 2024  -Sumstats P values are being converted to -log10(P)...
Sat Feb  3 18:14:29 2024  -Sanity check: 0 na/inf/-inf variants will be removed...
Sat Feb  3 18:14:30 2024  -Converting data above cut line...
Sat Feb  3 18:14:30 2024  -Maximum -log10(P) value is 167.58838029403677 .
Sat Feb  3 18:14:30 2024  -Minus log10(P) values above 20 will be shrunk with a shrinkage factor of 10...
Sat Feb  3 18:14:30 2024 Finished data conversion and sanity check.
Sat Feb  3 18:14:30 2024 Start to create MQQ plot with 91234 variants...
Sat Feb  3 18:14:30 2024  -Creating background plot...
Sat Feb  3 18:14:30 2024 Finished creating MQQ plot successfully!
Sat Feb  3 18:14:30 2024 Start to extract variants for annotation...
Sat Feb  3 18:14:31 2024  -Found 89 significant variants with a sliding window size of 500 kb...
Sat Feb  3 18:14:31 2024 Finished extracting variants for annotation...
Sat Feb  3 18:14:31 2024 Start to process figure arts.
Sat Feb  3 18:14:31 2024  -Processing X ticks...
Sat Feb  3 18:14:31 2024  -Processing X labels...
Sat Feb  3 18:14:31 2024  -Processing Y labels...
Sat Feb  3 18:14:31 2024  -Processing Y tick lables...
Sat Feb  3 18:14:31 2024  -Processing Y labels...
Sat Feb  3 18:14:31 2024  -Processing lines...
Sat Feb  3 18:14:31 2024 Finished processing figure arts.
Sat Feb  3 18:14:31 2024 Start to annotate variants...
Sat Feb  3 18:14:31 2024  -Skip annotating
Sat Feb  3 18:14:31 2024 Finished annotating variants.
Sat Feb  3 18:14:31 2024 Start to create QQ plot with 91234 variants:
Sat Feb  3 18:14:31 2024  -Plotting variants stratified by MAF...
Sat Feb  3 18:14:32 2024  -Lambda GC (MLOG10P mode) at 0.5 is   1.21283
Sat Feb  3 18:14:32 2024  -Processing Y tick lables...
Sat Feb  3 18:14:32 2024 Finished creating QQ plot successfully!
Sat Feb  3 18:14:32 2024 Start to save figure...
Sat Feb  3 18:14:34 2024  -Saved to my_maf_stratified_mqq_plot.png successfully! (overwrite)
Sat Feb  3 18:14:34 2024 Finished saving figure...
Sat Feb  3 18:14:34 2024 Finished creating plot successfully!

Out[24]:

(<Figure size 3000x1000 with 2 Axes>, <gwaslab.g_Log.Log at 0x7f6928adce20>)

Fig and Log object¶

plot_mqq will return a matplotlib figure object and a gwaslab log object

In [25]:

my_mqqplot,my_log = mysumstats.plot_mqq(skip=3,cut=20, mode="mqq",stratified=True,verbose=False)

my_mqqplot,my_log = mysumstats.plot_mqq(skip=3,cut=20, mode="mqq",stratified=True,verbose=False)

In [26]:

my_mqqplot

my_mqqplot

Out[26]:

In [28]:

my_log

my_log

Out[28]:

<gwaslab.g_Log.Log at 0x7f6928adce20>

In [ ]:

my_log.show()

my_log.show()
