Brisbane plot

Example

import gwaslab as gl
import pandas as pd

Example

gl.show_version()

stdout:

2024/12/23 12:19:09 GWASLab v4.0.0 https://cloufield.github.io/gwaslab/
2024/12/23 12:19:09 (C) 2022-2026, Yunye He, Kamatani Lab, GPL-3.0 license, gwaslab@gmail.com

Download data

Yengo, L., Vedantam, S., Marouli, E., Sidorenko, J., Bartell, E., Sakaue, S., ... & Lee, J. Y. (2022). A saturated map of common genetic variants associated with human height. Nature, 1-16. Fig. 2: Brisbane plot

Example

!wget https://static-content.springer.com/esm/art%3A10.1038%2Fs41586-022-05275-y/MediaObjects/41586_2022_5275_MOESM3_ESM.xlsx

stdout:

--2024-12-23 12:19:13--  https://static-content.springer.com/esm/art%3A10.1038%2Fs41586-022-05275-y/MediaObjects/41586_2022_5275_MOESM3_ESM.xlsx
Resolving static-content.springer.com (static-content.springer.com)... 146.75.112.95
Connecting to static-content.springer.com (static-content.springer.com)|146.75.112.95|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 9368771 (8.9M) [application/octet-stream]
Saving to: ‘41586_2022_5275_MOESM3_ESM.xlsx.1’

41586_2022_5275_MOE 100%[===================>]   8.93M  46.0MB/s    in 0.2s

2024-12-23 12:19:14 (46.0 MB/s) - ‘41586_2022_5275_MOESM3_ESM.xlsx.1’ saved [9368771/9368771]

Read into pandas dataframe

Example

data = pd.read_excel("41586_2022_5275_MOESM3_ESM.xlsx",sheet_name=10,skiprows=1)
data

stderr:

/home/yunye/anaconda3/envs/gwaslab_py39/lib/python3.9/site-packages/openpyxl/worksheet/_reader.py:329: UserWarning: Unknown extension is not supported and will be removed
  warn(msg)

Locus	Chr	SNP	BP (HG19)	BP (HG38)	Effect Allele (A1)	A1 Frequency	Marginal effect size (b)	b SE	b P-value	...	LD with the next SNP	Distance to the closest gene (kb)	Closest gene	Position relative to the closest gene	Replication (EBB) effect size	Replication (EBB) SE	Replication (EBB) P-value	Replication (EBB) COJO effect size	Replication (EBB) COJO SE	Replication (EBB) COJO P-value
1:METAFE	1	rs2710888	959842	1024462	T	0.340777	0.011478	0.000719	2.190000e-57	...	0.383297	4.340	AGRN	Gene-Body	0.016117	0.006618	0.014882	0.011628	0.007169	0.104822
1:METAFE	1	rs3934834	1005806	1070426	T	0.155679	0.009750	0.000867	2.440000e-29	...	0.032079	1.319	RNF223	Up-stream	0.020319	0.008240	0.013661	0.014769	0.008928	0.098090
2:METAFE	1	rs182532	1287040	1351660	T	0.032072	-0.016253	0.001845	1.250000e-18	...	-0.060743	1.028	MXRA8	Up-stream	0.019320	0.017633	0.273230	0.017967	0.017684	0.309621
2:METAFE	1	rs17160669	1305561	1370181	T	0.187613	0.010000	0.000902	1.480000e-28	...	0.017875	3.548	AURKAIP1	Up-stream	0.009437	0.009642	0.327702	0.011038	0.009670	0.253674
3:METAFE	1	rs9660106	1797947	1866508	G	0.484076	0.004450	0.000632	1.860000e-12	...	0.027731	24.609	GNB1	Gene-Body	0.014751	0.006449	0.022182	0.013992	0.006462	0.030383
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
7206:METAFE	22	rs9628283	50540766	50102337	C	0.028417	0.014488	0.001852	5.130000e-15	...	-0.065326	12.332	MOV10L1	Gene-Body	0.014345	0.027401	0.600616	0.008326	0.027836	0.764848
7207:METAFE	22	rs28642259	50785718	50347289	T	0.323849	-0.005336	0.000719	1.140000e-13	...	-0.101697	3.973	PPP6R2	Gene-Body	-0.003071	0.007242	0.671512	-0.001554	0.007312	0.831684
7208:METAFE	22	rs11555194	50876662	50438233	G	0.028294	0.015256	0.001921	2.000000e-15	...	0.106224	6.768	SBF1	Up-stream	0.018349	0.019176	0.338620	0.017029	0.019396	0.379943
7208:METAFE	22	rs762669	50943423	50504994	A	0.175297	-0.009376	0.000820	3.000000e-30	...	0.006762	2.048	LMF2	Gene-Body	-0.001830	0.009092	0.840476	-0.002904	0.009160	0.751260
7209:METAFE	22	rs9628185	51109992	50671564	C	0.457101	0.004333	0.000628	5.430000e-12	...	0.000000	3.077	SHANK3	Up-stream	0.000249	0.006356	0.968802	0.000514	0.006368	0.935627

[12111 rows x 26 columns]

Load into gwaslab Sumstats

Example

sumstats = gl.Sumstats(data,snpid="SNP",chrom="Chr",pos="BP (HG19)",p="b P-value")

stdout:

2024/12/23 12:19:16 GWASLab v4.0.0 https://cloufield.github.io/gwaslab/
2024/12/23 12:19:16 (C) 2022-2026, Yunye He, Kamatani Lab, GPL-3.0 license, gwaslab@gmail.com
2024/12/23 12:19:16 Start to initialize gl.Sumstats from pandas DataFrame ...
2024/12/23 12:19:16  -Reading columns          : BP (HG19),Chr,SNP,b P-value
2024/12/23 12:19:16  -Renaming columns to      : POS,CHR,SNPID,P
2024/12/23 12:19:16  -Current Dataframe shape : 12111  x  4
2024/12/23 12:19:16  -Initiating a status column: STATUS ...
2024/12/23 12:19:16  #WARNING! Version of genomic coordinates is unknown...
2024/12/23 12:19:17 Start to reorder the columns...v4.0.0
2024/12/23 12:19:17  -Current Dataframe shape : 12111 x 5 ; Memory usage: 21.88 MB
2024/12/23 12:19:17  -Reordering columns to    : SNPID,CHR,POS,P,STATUS
2024/12/23 12:19:17 Finished reordering the columns.
2024/12/23 12:19:17  -Column  : SNPID  CHR    POS   P       STATUS
2024/12/23 12:19:17  -DType   : object string int64 float64 category
2024/12/23 12:19:17  -Verified: T      F      T     T       T
2024/12/23 12:19:17  #WARNING! Columns with possibly incompatible dtypes: CHR
2024/12/23 12:19:17  -Current Dataframe memory usage: 21.88 MB
2024/12/23 12:19:17 Finished loading data successfully!

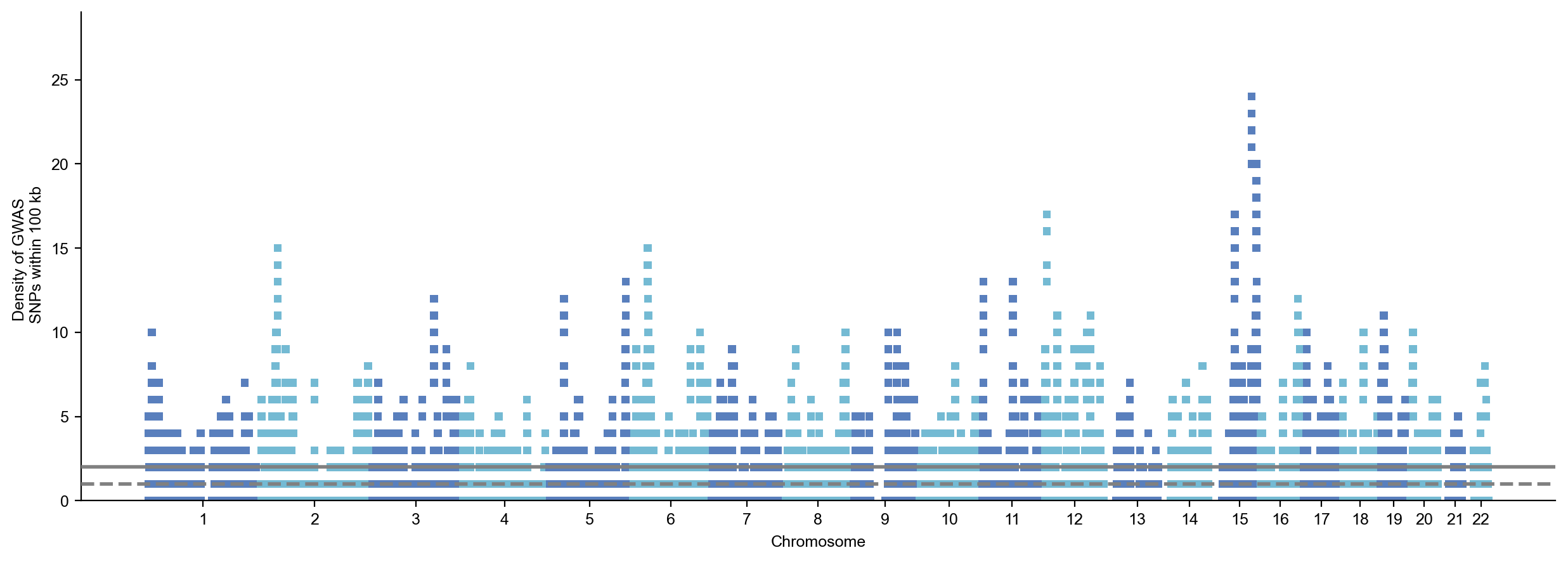

Brisbane plot

mode=b : Brisbane plot

Example

sumstats.plot_mqq(mode="b")

stdout:

2024/12/23 12:19:17 Start to create MQQ plot...v4.0.0:
2024/12/23 12:19:17  -Genomic coordinates version: 99...
2024/12/23 12:19:17  #WARNING! Genomic coordinates version is unknown.
2024/12/23 12:19:17  -Genome-wide significance level to plot is set to 5e-08 ...
2024/12/23 12:19:17  -Raw input contains 12111 variants...
2024/12/23 12:19:17  -MQQ plot layout mode is : b
2024/12/23 12:19:17 Finished loading specified columns from the sumstats.
2024/12/23 12:19:17 Start data conversion and sanity check:
2024/12/23 12:19:17  -Removed 0 variants with nan in CHR or POS column ...
2024/12/23 12:19:17  -Removed 0 variants with CHR <=0...
2024/12/23 12:19:17  -Calculating DENSITY with windowsize of  100  kb
2024/12/23 12:19:17  -Converting data above cut line...
2024/12/23 12:19:17  -Maximum DENSITY value is 24.0 .
2024/12/23 12:19:17 Finished data conversion and sanity check.
2024/12/23 12:19:17 Start to create MQQ plot with 12111 variants...
2024/12/23 12:19:17  -Creating background plot...
2024/12/23 12:19:17 Finished creating MQQ plot successfully!
2024/12/23 12:19:17 Start to extract variants for annotation...
2024/12/23 12:19:17 Finished extracting variants for annotation...
2024/12/23 12:19:17 Start to process figure arts.
2024/12/23 12:19:17  -Processing X ticks...
2024/12/23 12:19:17  -Processing X labels...
2024/12/23 12:19:17  -Processing Y labels...
2024/12/23 12:19:17  -Processing Y tick labels...
2024/12/23 12:19:17  -Processing Y labels...
2024/12/23 12:19:17  -Processing lines...
2024/12/23 12:19:17  -Plotting horizontal line (  mean DENISTY): y = 1.9998348608702832
2024/12/23 12:19:17  -Plotting horizontal line ( median DENISTY): y = 1.0
2024/12/23 12:19:17 Finished processing figure arts.
2024/12/23 12:19:17 Start to annotate variants...
2024/12/23 12:19:17  -Skip annotating
2024/12/23 12:19:17 Finished annotating variants.
2024/12/23 12:19:17 Start to save figure...
2024/12/23 12:19:17  -Skip saving figure!
2024/12/23 12:19:17 Finished saving figure...
2024/12/23 12:19:17 Finished creating plot successfully!

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f1446bc8b80>)

Output image

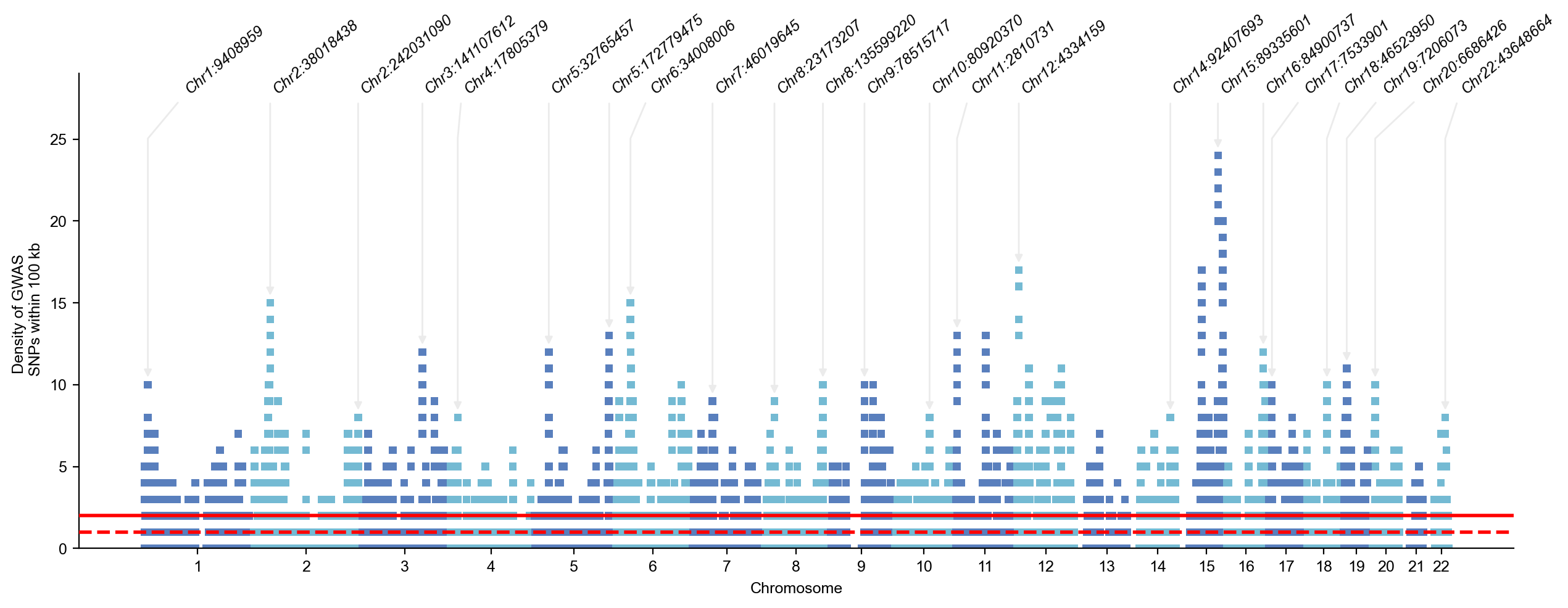

Some customizations

Example

sumstats.plot_mqq(mode="b",anno=True,sig_line_color="red", windowsizekb=100000, verbose=False)

stdout:

2024/12/23 12:19:18  #WARNING! Genomic coordinates version is unknown.

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f1446bc8b80>)

Output image

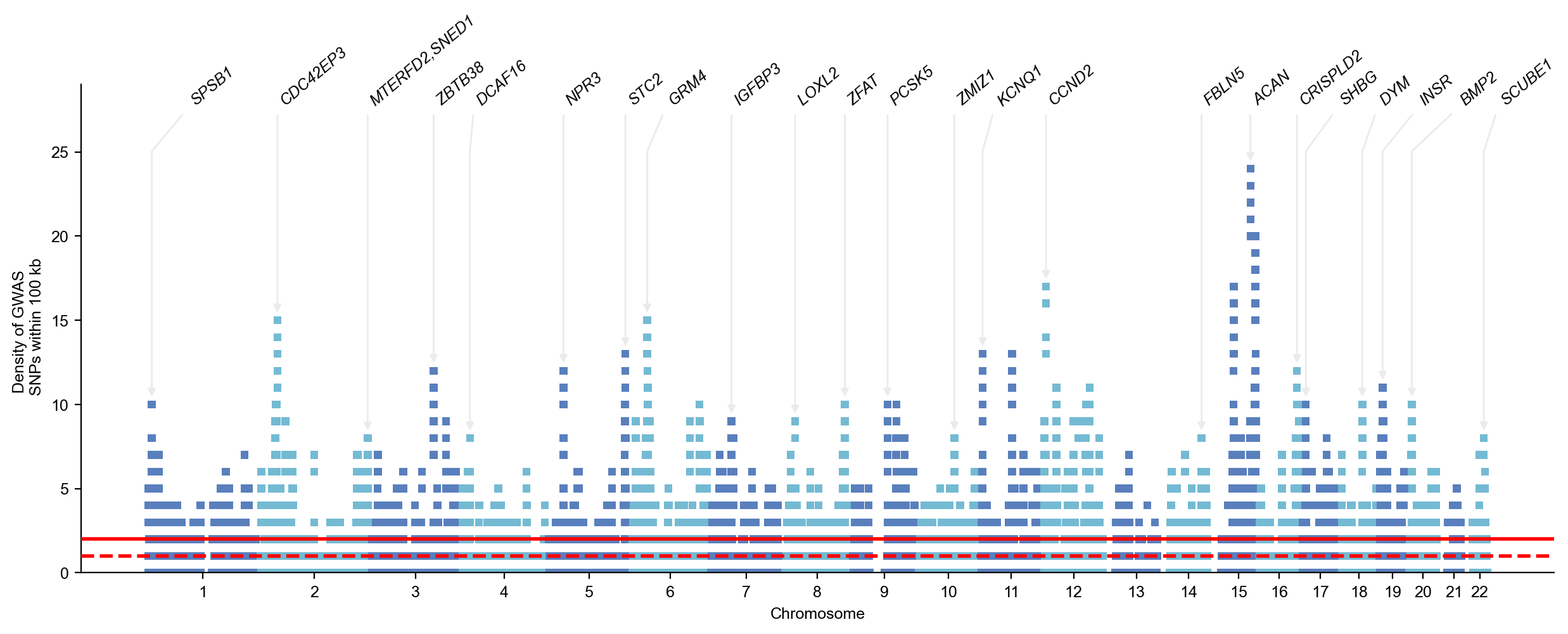

Annotate with gene names

Example

sumstats.plot_mqq(mode="b",anno="GENENAME",sig_line_color="red",build="19",windowsizekb=100000, verbose=False)

(<Figure size 3000x1000 with 1 Axes>, <gwaslab.g_Log.Log at 0x7f1446bc8b80>)

Output image
