Visualization by gwaslab¶
Import gwaslab package¶
In [2]:
Copied!
import gwaslab as gl
import gwaslab as gl
Load sumstats¶
In [3]:
Copied!
sumstats = gl.Sumstats("1kgeas.B1.glm.firth",fmt="plink2")
sumstats = gl.Sumstats("1kgeas.B1.glm.firth",fmt="plink2")
Tue Dec 26 15:56:49 2023 GWASLab v3.4.22 https://cloufield.github.io/gwaslab/ Tue Dec 26 15:56:49 2023 (C) 2022-2023, Yunye He, Kamatani Lab, MIT License, gwaslab@gmail.com Tue Dec 26 15:56:49 2023 Start to load format from formatbook.... Tue Dec 26 15:56:49 2023 -plink2 format meta info: Tue Dec 26 15:56:49 2023 - format_name : PLINK2 .glm.firth, .glm.logistic,.glm.linear Tue Dec 26 15:56:49 2023 - format_source : https://www.cog-genomics.org/plink/2.0/formats Tue Dec 26 15:56:49 2023 - format_version : Alpha 3.3 final (3 Jun) Tue Dec 26 15:56:49 2023 - last_check_date : 20220806 Tue Dec 26 15:56:49 2023 -plink2 to gwaslab format dictionary: Tue Dec 26 15:56:49 2023 - plink2 keys: ID,#CHROM,POS,REF,ALT,A1,OBS_CT,A1_FREQ,BETA,LOG(OR)_SE,SE,T_STAT,Z_STAT,P,LOG10_P,MACH_R2,OR Tue Dec 26 15:56:49 2023 - gwaslab values: SNPID,CHR,POS,REF,ALT,EA,N,EAF,BETA,SE,SE,T,Z,P,MLOG10P,INFO,OR Tue Dec 26 15:56:49 2023 Start to initiate from file :1kgeas.B1.glm.firth Tue Dec 26 15:56:50 2023 -Reading columns : REF,ID,ALT,POS,OR,LOG(OR)_SE,Z_STAT,OBS_CT,A1,#CHROM,P,A1_FREQ Tue Dec 26 15:56:50 2023 -Renaming columns to : REF,SNPID,ALT,POS,OR,SE,Z,N,EA,CHR,P,EAF Tue Dec 26 15:56:50 2023 -Current Dataframe shape : 1128732 x 12 Tue Dec 26 15:56:50 2023 -Initiating a status column: STATUS ... Tue Dec 26 15:56:50 2023 NEA not available: assigning REF to NEA... Tue Dec 26 15:56:50 2023 -EA,REF and ALT columns are available: assigning NEA... Tue Dec 26 15:56:50 2023 -For variants with EA == ALT : assigning REF to NEA ... Tue Dec 26 15:56:50 2023 -For variants with EA != ALT : assigning ALT to NEA ... Tue Dec 26 15:56:50 2023 Start to reorder the columns... Tue Dec 26 15:56:50 2023 -Current Dataframe shape : 1128732 x 14 Tue Dec 26 15:56:50 2023 -Reordering columns to : SNPID,CHR,POS,EA,NEA,EAF,SE,Z,P,OR,N,STATUS,REF,ALT Tue Dec 26 15:56:50 2023 Finished sorting columns successfully! Tue Dec 26 15:56:50 2023 -Column: SNPID CHR POS EA NEA EAF SE Z P OR N STATUS REF ALT Tue Dec 26 15:56:50 2023 -DType : object int64 int64 category category float64 float64 float64 float64 float64 int64 category category category Tue Dec 26 15:56:50 2023 Finished loading data successfully!
In [4]:
Copied!
sumstats.data
sumstats.data
Out[4]:
| SNPID | CHR | POS | EA | NEA | EAF | SE | Z | P | OR | N | STATUS | REF | ALT | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 1:15774:G:A | 1 | 15774 | A | G | 0.028283 | NaN | NaN | NaN | NaN | 495 | 9999999 | G | A |
| 1 | 1:15777:A:G | 1 | 15777 | G | A | 0.073737 | NaN | NaN | NaN | NaN | 495 | 9999999 | A | G |
| 2 | 1:57292:C:T | 1 | 57292 | T | C | 0.104675 | NaN | NaN | NaN | NaN | 492 | 9999999 | C | T |
| 3 | 1:77874:G:A | 1 | 77874 | A | G | 0.019153 | 0.462750 | 0.249299 | 0.803130 | 1.122280 | 496 | 9999999 | G | A |
| 4 | 1:87360:C:T | 1 | 87360 | T | C | 0.023139 | NaN | NaN | NaN | NaN | 497 | 9999999 | C | T |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 1128727 | 22:51217954:G:A | 22 | 51217954 | A | G | 0.033199 | NaN | NaN | NaN | NaN | 497 | 9999999 | G | A |
| 1128728 | 22:51218377:G:C | 22 | 51218377 | C | G | 0.033333 | 0.362212 | -0.994457 | 0.320000 | 0.697534 | 495 | 9999999 | G | C |
| 1128729 | 22:51218615:T:A | 22 | 51218615 | A | T | 0.033266 | 0.362476 | -1.029230 | 0.303374 | 0.688618 | 496 | 9999999 | T | A |
| 1128730 | 22:51222100:G:T | 22 | 51222100 | T | G | 0.039157 | NaN | NaN | NaN | NaN | 498 | 9999999 | G | T |
| 1128731 | 22:51239678:G:T | 22 | 51239678 | T | G | 0.034137 | NaN | NaN | NaN | NaN | 498 | 9999999 | G | T |
1128732 rows × 14 columns
Check the lead variants in significant loci¶
In [5]:
Copied!
sumstats.get_lead(sig_level=5e-8)
sumstats.get_lead(sig_level=5e-8)
Tue Dec 26 15:56:51 2023 Start to extract lead variants... Tue Dec 26 15:56:51 2023 -Processing 1128732 variants... Tue Dec 26 15:56:51 2023 -Significance threshold : 5e-08 Tue Dec 26 15:56:51 2023 -Sliding window size: 500 kb Tue Dec 26 15:56:51 2023 -Found 43 significant variants in total... Tue Dec 26 15:56:51 2023 -Identified 4 lead variants! Tue Dec 26 15:56:51 2023 Finished extracting lead variants successfully!
Out[5]:
| SNPID | CHR | POS | EA | NEA | EAF | SE | Z | P | OR | N | STATUS | REF | ALT | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54904 | 1:167562605:G:A | 1 | 167562605 | A | G | 0.391481 | 0.159645 | 7.69462 | 1.419150e-14 | 3.415780 | 493 | 9999999 | G | A |
| 113179 | 2:55513738:C:T | 2 | 55513738 | C | T | 0.376008 | 0.153159 | -7.96244 | 1.686760e-15 | 0.295373 | 496 | 9999999 | C | T |
| 549726 | 7:134368632:T:G | 7 | 134368632 | G | T | 0.138105 | 0.225526 | 6.89025 | 5.569440e-12 | 4.730010 | 496 | 9999999 | T | G |
| 1088750 | 20:42758834:T:C | 20 | 42758834 | T | C | 0.227273 | 0.184323 | -7.76902 | 7.909780e-15 | 0.238829 | 495 | 9999999 | T | C |

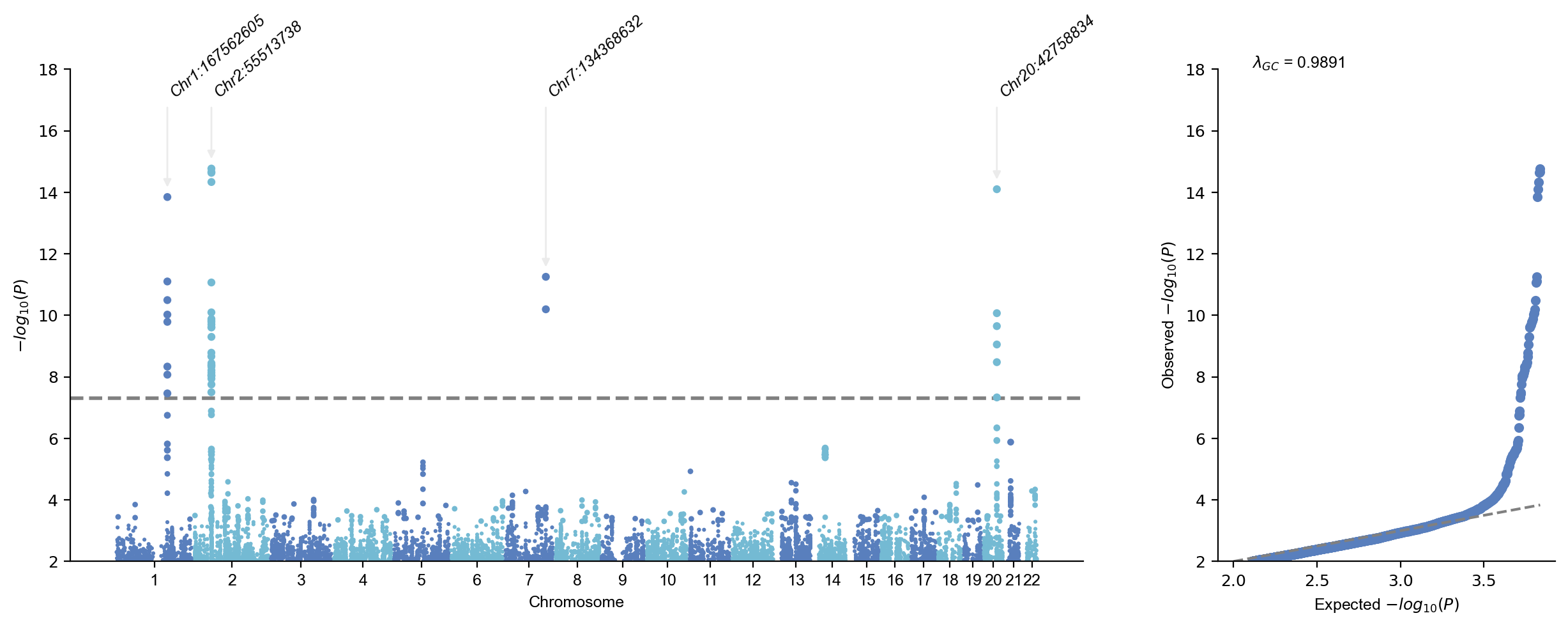

Create mahattan plot¶
In [9]:
Copied!
sumstats.plot_mqq(skip=2,anno=True)
sumstats.plot_mqq(skip=2,anno=True)
Tue Dec 26 15:59:17 2023 Start to plot manhattan/qq plot with the following basic settings: Tue Dec 26 15:59:17 2023 -Genomic coordinates version: 99... Tue Dec 26 15:59:17 2023 -WARNING!!! Genomic coordinates version is unknown... Tue Dec 26 15:59:17 2023 -Genome-wide significance level is set to 5e-08 ... Tue Dec 26 15:59:17 2023 -Raw input contains 1128732 variants... Tue Dec 26 15:59:17 2023 -Plot layout mode is : mqq Tue Dec 26 15:59:17 2023 Finished loading specified columns from the sumstats. Tue Dec 26 15:59:17 2023 Start conversion and sanity check: Tue Dec 26 15:59:17 2023 -Removed 0 variants with nan in CHR or POS column ... Tue Dec 26 15:59:17 2023 -Removed 0 varaints with CHR <=0... Tue Dec 26 15:59:17 2023 -Removed 220793 variants with nan in P column ... Tue Dec 26 15:59:17 2023 -Sanity check after conversion: 0 variants with P value outside of (0,1] will be removed... Tue Dec 26 15:59:17 2023 -Sumstats P values are being converted to -log10(P)... Tue Dec 26 15:59:17 2023 -Sanity check: 0 na/inf/-inf variants will be removed... Tue Dec 26 15:59:17 2023 -Maximum -log10(P) values is 14.772946706439042 . Tue Dec 26 15:59:17 2023 Finished data conversion and sanity check. Tue Dec 26 15:59:17 2023 Start to create manhattan plot with 6866 variants: Tue Dec 26 15:59:17 2023 -Found 4 significant variants with a sliding window size of 500 kb... Tue Dec 26 15:59:17 2023 Finished creating Manhattan plot successfully! Tue Dec 26 15:59:17 2023 -Annotating using column CHR:POS... Tue Dec 26 15:59:17 2023 -Adjusting text positions with repel_force=0.03... Tue Dec 26 15:59:17 2023 Start to create QQ plot with 6866 variants: Tue Dec 26 15:59:17 2023 Expected range of P: (0,1.0) Tue Dec 26 15:59:17 2023 -Lambda GC (MLOG10P mode) at 0.5 is 0.98908 Tue Dec 26 15:59:17 2023 Finished creating QQ plot successfully! Tue Dec 26 15:59:17 2023 -Skip saving figures!
Out[9]:
(<Figure size 3000x1000 with 2 Axes>, <gwaslab.Log.Log at 0x7f55daa2f400>)
QC check¶
In [6]:
Copied!
sumstats.basic_check()
sumstats.basic_check()
Tue Dec 27 23:08:13 2022 Start to check IDs... Tue Dec 27 23:08:13 2022 -Current Dataframe shape : 1122299 x 11 Tue Dec 27 23:08:13 2022 -Checking if SNPID is chr:pos:ref:alt...(separator: - ,: , _) Tue Dec 27 23:08:14 2022 Finished checking IDs successfully! Tue Dec 27 23:08:14 2022 Start to fix chromosome notation... Tue Dec 27 23:08:14 2022 -Current Dataframe shape : 1122299 x 11 Tue Dec 27 23:08:17 2022 -Vairants with standardized chromosome notation: 1122299 Tue Dec 27 23:08:19 2022 -All CHR are already fixed... Tue Dec 27 23:08:21 2022 Finished fixing chromosome notation successfully! Tue Dec 27 23:08:21 2022 Start to fix basepair positions... Tue Dec 27 23:08:21 2022 -Current Dataframe shape : 1122299 x 11 Tue Dec 27 23:08:21 2022 -Converting to Int64 data type ... Tue Dec 27 23:08:22 2022 -Position upper_bound is: 250,000,000 Tue Dec 27 23:08:24 2022 -Remove outliers: 0 Tue Dec 27 23:08:24 2022 -Converted all position to datatype Int64. Tue Dec 27 23:08:24 2022 Finished fixing basepair position successfully! Tue Dec 27 23:08:24 2022 Start to fix alleles... Tue Dec 27 23:08:24 2022 -Current Dataframe shape : 1122299 x 11 Tue Dec 27 23:08:25 2022 -Detected 0 variants with alleles that contain bases other than A/C/T/G . Tue Dec 27 23:08:25 2022 -Converted all bases to string datatype and UPPERCASE. Tue Dec 27 23:08:27 2022 Finished fixing allele successfully! Tue Dec 27 23:08:27 2022 Start sanity check for statistics ... Tue Dec 27 23:08:27 2022 -Current Dataframe shape : 1122299 x 11 Tue Dec 27 23:08:27 2022 -Checking if 0 <=N<= inf ... Tue Dec 27 23:08:27 2022 -Removed 0 variants with bad N. Tue Dec 27 23:08:27 2022 -Checking if -37.5 <Z< 37.5 ... Tue Dec 27 23:08:27 2022 -Removed 14 variants with bad Z. Tue Dec 27 23:08:27 2022 -Checking if 5e-300 <= P <= 1 ... Tue Dec 27 23:08:27 2022 -Removed 0 variants with bad P. Tue Dec 27 23:08:27 2022 -Checking if 0 <SE< inf ... Tue Dec 27 23:08:27 2022 -Removed 0 variants with bad SE. Tue Dec 27 23:08:27 2022 -Checking if -10 <log(OR)< 10 ... Tue Dec 27 23:08:27 2022 -Removed 0 variants with bad OR. Tue Dec 27 23:08:27 2022 -Checking STATUS... Tue Dec 27 23:08:28 2022 -Coverting STAUTUS to interger. Tue Dec 27 23:08:28 2022 -Removed 14 variants with bad statistics in total. Tue Dec 27 23:08:28 2022 Finished sanity check successfully! Tue Dec 27 23:08:28 2022 Start to normalize variants... Tue Dec 27 23:08:28 2022 -Current Dataframe shape : 1122285 x 11 Tue Dec 27 23:08:29 2022 -No available variants to normalize.. Tue Dec 27 23:08:29 2022 Finished normalizing variants successfully!

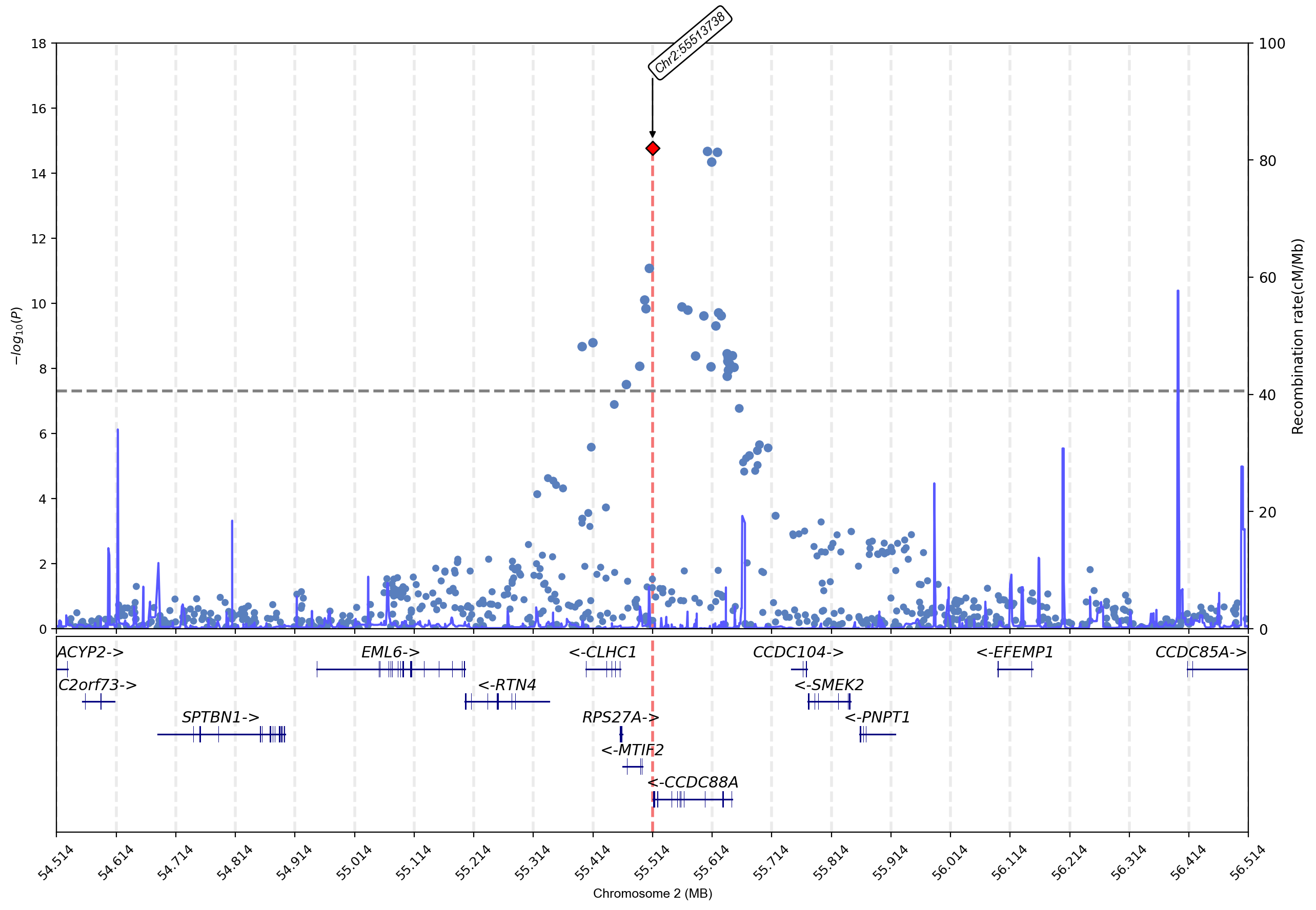

Create regional plot¶
In [7]:
Copied!
sumstats.plot_mqq(mode="r",anno=True,region=(2,54513738,56513738),region_grid=True,build="19")
#2:55513738
sumstats.plot_mqq(mode="r",anno=True,region=(2,54513738,56513738),region_grid=True,build="19")
#2:55513738
Tue Dec 26 15:58:10 2023 Start to plot manhattan/qq plot with the following basic settings: Tue Dec 26 15:58:10 2023 -Genomic coordinates version: 19... Tue Dec 26 15:58:10 2023 -Genome-wide significance level is set to 5e-08 ... Tue Dec 26 15:58:10 2023 -Raw input contains 1128732 variants... Tue Dec 26 15:58:10 2023 -Plot layout mode is : r Tue Dec 26 15:58:10 2023 -Region to plot : chr2:54513738-56513738. Tue Dec 26 15:58:10 2023 -Extract SNPs in region : chr2:54513738-56513738... Tue Dec 26 15:58:10 2023 -Extract SNPs in specified regions: 865 Tue Dec 26 15:58:10 2023 Finished loading specified columns from the sumstats. Tue Dec 26 15:58:10 2023 Start conversion and sanity check: Tue Dec 26 15:58:10 2023 -Removed 0 variants with nan in CHR or POS column ... Tue Dec 26 15:58:10 2023 -Removed 0 varaints with CHR <=0... Tue Dec 26 15:58:10 2023 -Removed 160 variants with nan in P column ... Tue Dec 26 15:58:10 2023 -Sanity check after conversion: 0 variants with P value outside of (0,1] will be removed... Tue Dec 26 15:58:10 2023 -Sumstats P values are being converted to -log10(P)... Tue Dec 26 15:58:10 2023 -Sanity check: 0 na/inf/-inf variants will be removed... Tue Dec 26 15:58:11 2023 -Maximum -log10(P) values is 14.772946706439042 . Tue Dec 26 15:58:11 2023 Finished data conversion and sanity check. Tue Dec 26 15:58:11 2023 Start to create manhattan plot with 705 variants: Tue Dec 26 15:58:11 2023 -Extracting lead variant... Tue Dec 26 15:58:11 2023 -Loading gtf files from:default
INFO:root:Extracted GTF attributes: ['gene_id', 'gene_name', 'gene_biotype']
Tue Dec 26 15:58:40 2023 -plotting gene track.. Tue Dec 26 15:58:40 2023 -Finished plotting gene track.. Tue Dec 26 15:58:40 2023 -Found 1 significant variants with a sliding window size of 500 kb... Tue Dec 26 15:58:40 2023 Finished creating Manhattan plot successfully! Tue Dec 26 15:58:40 2023 -Annotating using column CHR:POS... Tue Dec 26 15:58:40 2023 -Adjusting text positions with repel_force=0.03... Tue Dec 26 15:58:40 2023 -Skip saving figures!
Out[7]:
(<Figure size 3000x2000 with 3 Axes>, <gwaslab.Log.Log at 0x7f55daa2f400>)

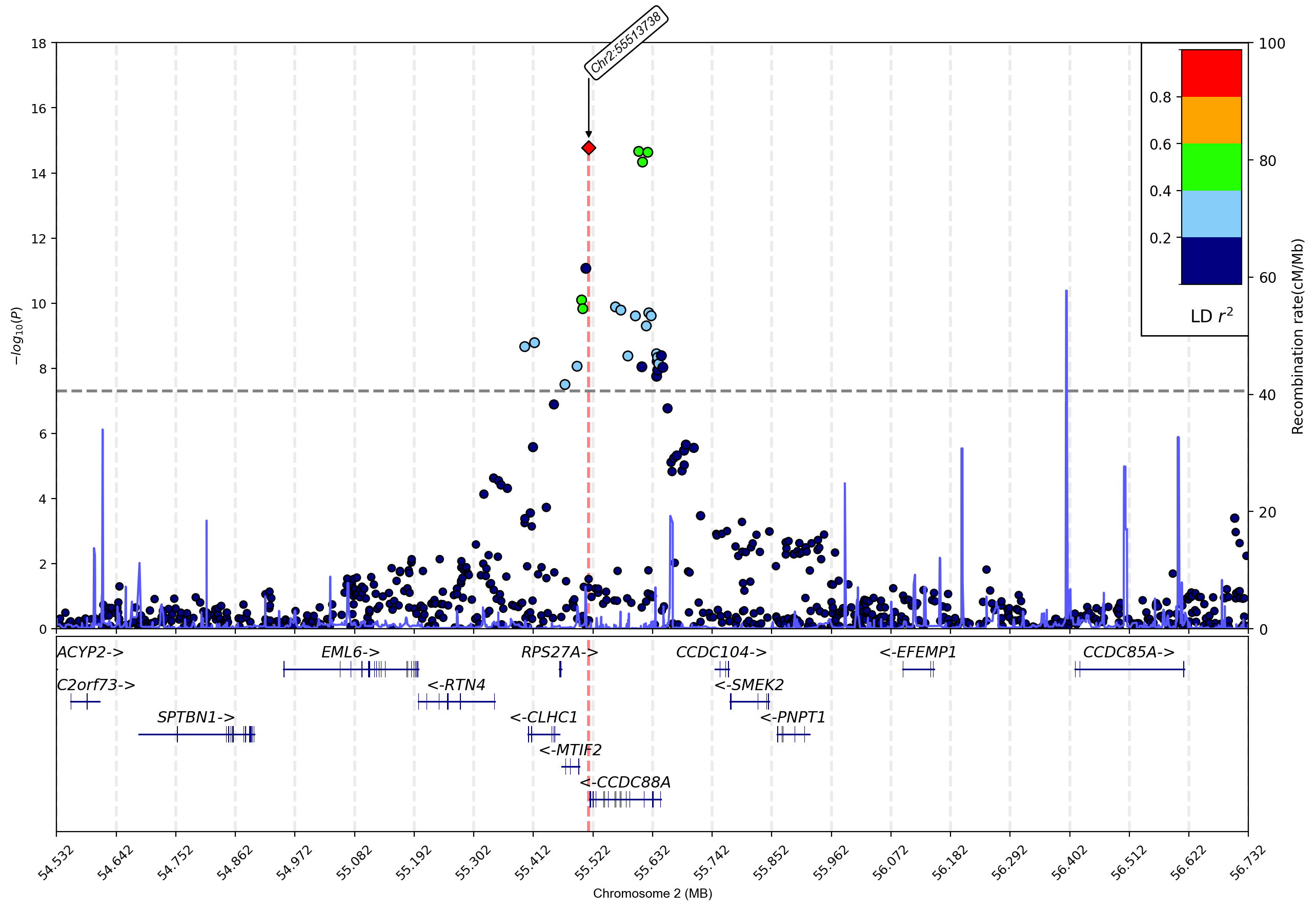

Create regional plot with LD information¶
In [8]:
Copied!
gl.download_ref("1kg_eas_hg19")
gl.download_ref("1kg_eas_hg19")
Tue Dec 27 22:44:52 2022 Start to download 1kg_eas_hg19 ... Tue Dec 27 22:44:52 2022 -Downloading to: /home/he/anaconda3/envs/py38/lib/python3.8/site-packages/gwaslab/data/EAS.ALL.split_norm_af.1kgp3v5.hg19.vcf.gz Tue Dec 27 22:52:33 2022 -Updating record in config file... Tue Dec 27 22:52:35 2022 -Updating record in config file... Tue Dec 27 22:52:35 2022 -Downloading to: /home/he/anaconda3/envs/py38/lib/python3.8/site-packages/gwaslab/data/EAS.ALL.split_norm_af.1kgp3v5.hg19.vcf.gz.tbi Tue Dec 27 22:52:35 2022 Downloaded 1kg_eas_hg19 successfully!
In [8]:
Copied!
sumstats.plot_mqq(mode="r",anno=True,region=(2,54531536,56731536),region_grid=True,vcf_path=gl.get_path("1kg_eas_hg19"),build="19")
sumstats.plot_mqq(mode="r",anno=True,region=(2,54531536,56731536),region_grid=True,vcf_path=gl.get_path("1kg_eas_hg19"),build="19")
Tue Dec 26 15:58:41 2023 Start to plot manhattan/qq plot with the following basic settings: Tue Dec 26 15:58:41 2023 -Genomic coordinates version: 19... Tue Dec 26 15:58:41 2023 -Genome-wide significance level is set to 5e-08 ... Tue Dec 26 15:58:41 2023 -Raw input contains 1128732 variants... Tue Dec 26 15:58:41 2023 -Plot layout mode is : r Tue Dec 26 15:58:41 2023 -Region to plot : chr2:54531536-56731536. Tue Dec 26 15:58:41 2023 -Checking prefix for chromosomes in vcf files... Tue Dec 26 15:58:41 2023 -No prefix for chromosomes in the VCF files. Tue Dec 26 15:58:41 2023 -Extract SNPs in region : chr2:54531536-56731536... Tue Dec 26 15:58:41 2023 -Extract SNPs in specified regions: 967 Tue Dec 26 15:58:41 2023 Finished loading specified columns from the sumstats. Tue Dec 26 15:58:41 2023 Start conversion and sanity check: Tue Dec 26 15:58:41 2023 -Removed 0 variants with nan in CHR or POS column ... Tue Dec 26 15:58:41 2023 -Removed 0 varaints with CHR <=0... Tue Dec 26 15:58:41 2023 -Removed 172 variants with nan in P column ... Tue Dec 26 15:58:41 2023 -Sanity check after conversion: 0 variants with P value outside of (0,1] will be removed... Tue Dec 26 15:58:41 2023 -Sumstats P values are being converted to -log10(P)... Tue Dec 26 15:58:41 2023 -Sanity check: 0 na/inf/-inf variants will be removed... Tue Dec 26 15:58:41 2023 -Maximum -log10(P) values is 14.772946706439042 . Tue Dec 26 15:58:41 2023 Finished data conversion and sanity check. Tue Dec 26 15:58:41 2023 Start to load reference genotype... Tue Dec 26 15:58:41 2023 -reference vcf path : /home/yunye/.gwaslab/EAS.ALL.split_norm_af.1kgp3v5.hg19.vcf.gz Tue Dec 26 15:58:43 2023 -Retrieving index... Tue Dec 26 15:58:43 2023 -Ref variants in the region: 71908 Tue Dec 26 15:58:43 2023 -Matching variants using POS, NEA, EA ... Tue Dec 26 15:58:43 2023 -Calculating Rsq... Tue Dec 26 15:58:43 2023 Finished loading reference genotype successfully! Tue Dec 26 15:58:43 2023 Start to create manhattan plot with 795 variants: Tue Dec 26 15:58:43 2023 -Extracting lead variant... Tue Dec 26 15:58:44 2023 -Loading gtf files from:default
INFO:root:Extracted GTF attributes: ['gene_id', 'gene_name', 'gene_biotype']
Tue Dec 26 15:59:12 2023 -plotting gene track.. Tue Dec 26 15:59:12 2023 -Finished plotting gene track.. Tue Dec 26 15:59:13 2023 -Found 1 significant variants with a sliding window size of 500 kb... Tue Dec 26 15:59:13 2023 Finished creating Manhattan plot successfully! Tue Dec 26 15:59:13 2023 -Annotating using column CHR:POS... Tue Dec 26 15:59:13 2023 -Adjusting text positions with repel_force=0.03... Tue Dec 26 15:59:13 2023 -Skip saving figures!
Out[8]:
(<Figure size 3000x2000 with 4 Axes>, <gwaslab.Log.Log at 0x7f55daa2f400>)
